Hp 10780F remote laser receiver

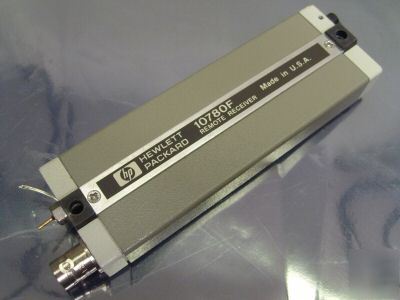

Hp 10780F Remote Laser Receiver
This is a used unit, with small scratches, and excellent condition.
Unit comes as shown, no other accessories are included.
Power cords are not included unless permanently attached to the unit itself
Manufacturer's Specifications/Features:
(Please note that not all features may be included in this item)
Agilent HP 10780F Remote Receiver
* Agilent 10780F Remote Receiver
* Typical Power Requirements: +15 volts at 136 mA
* Maximum Sensitivity: 2.2 uW (with 2 m cable, becomes 5.0 uW with a 10 m fiber cable)
* Heat Dissipation: 0.0 W for remote sensor
* 2.0 W typical for receiver
* Output Signal: Differential square wave at Doppler-shifted split frequency (100kHz to 6.0 Mhz)
* Fiber-optic Cable Length: 2 m standard, 10 m maximum recommended
* Alignment Tolerances: Roll: +/- 3 degrees
* Agilent 10780F is self-aligning when mounted to the Agilent 10715A, Agilent 10716A, Agilent 10717A, Agilent 10719A, Agilent 10721A, Agilent 10735A, Agilent 10736A, Agilent 10737L, and Agilent 10737R
* 26 g (0.9 oz) for remote sensor with 2m cable
* Fiber-optic cable gives flexibility in mounting position
* Simple installation with self-alignment feature
* Up to 10 meter cable length
* Usable with a variety of optical components and electronics
* The fiber-optic cable used to attach the remote sensor to the receiver
* electronics allows design flexibility and easy access to the receiver gain adjustment.
* The Agilent 10780F is self-aligning when mounted to selected Agilent sensors and interferometers: the 10715A, 10716A, 10717A, 10719A, 10721A, 10735A, 10736A, 10737L and 10737R
