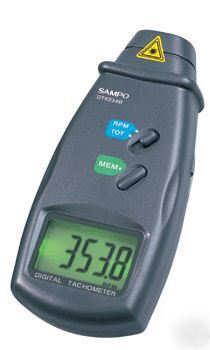

Digital laser photo tachometer DT6235B


●Display: 5digits 18mm(0.6") Yellow green backlight LCD Accuracy: ±(0.05%+1 digit)
●Sampling Time: 0.5 sec(over 120RPM)
●Memory: Last value,Max. Value,Min.value
●Time Base: 6MHz Quartz crystal
●Power Consumption: Approx 45mA
SURFACE SPEED(m/min) 0.05 to 1,999.9(m/min)
SURFACE SPEED(ft/min) 0.2 to 6,560ft/min
CONTACT TACH: 0.1RPM(0.5 to 999.9RPM)
Surface speed(m/min) 0.01m/min(0.05 to 99.99m/min)
Surface speed(ft/min) 0.1ft/min(0.1 to 999.9m/min)
●Power: 4X1.5V AA Size Battery or to external DC 6V Regulated power supply
All our Tachometers are provided one year warrantee by us from the date you make a purchase. An replacement or repairment will be provided by us for free when a faulty is developed within the warrantee.
