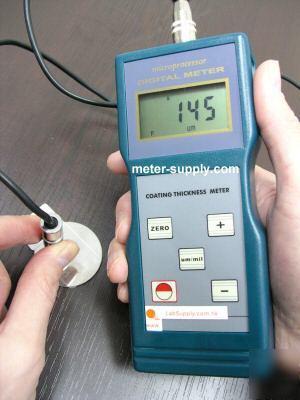

8823 digital coating paint thickness gauge meter
Handheld Coating Thickness Gauge
ETC-8823 COATING THICKNESS METER *for non-magnetic metal substrate
* It meets the standard of ISO-2361. Suitable for the laboratory and for use in harsh field conditions.
* The NF probes measure the coating thickness on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder applied on Aluminum, Brass substrates, etc.
* Used the exclusive Micro-computer LSI circuit any crystal time base to offer high accuracy measurement & fast measuring time.
* Wide measuring range and high resolution.
* Digital display gives exact reading with no guessing or errors.
* The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortably in either hand.
* MEASURING PRINCIPLE: eddy current
+/- 1 – 3%n or 2.5um (Whichever is the greater)
Temp. 0 –50 deg.C, Humidity <80%
161 x 69 x 32mm (6.3 x 2.7 x 1.2 inch)
About 260g (including batteries)
Carrying case, Operating manual, NF probe, Calibration foils, Substrate (Aluminum)
*The meter includes main unit, Carrying Case, Operation manual, NF probe, Calibration foils, Substrate (Aluminum)
Please contact us for other country
