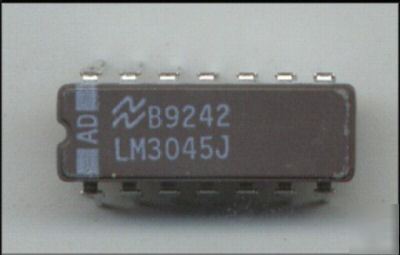

3045 / LM3045J / LM3045 / transistor arrays
Now over 1,000 items in our Store!
LM3045/LM3046/LM3086 Transistor Arrays
The LM3045, LM3046 and LM3086 each consist of five general purpose silicon NPN transistors on a common monolithic substrate. Two of the transistors are internally connected to form a differentially-connected pair. The transistors are well suited to a wide variety of applications in low power system in the DC through VHF range. They may be used as discrete transistors in conventional circuits however, in addition, they provide the very significant inherent integrated circuit advantages of close electrical and thermal matching. The LM3045 is supplied in a 14-lead cavity dual-in-line package rated for operation over the full military temperature range. The LM3046 and LM3086 are electrically identical to the LM3045 but are supplied in a 14-lead molded dual-in-line package for applications requiring only a limited temperature range.
Two matched pairs of transistors VBE matched g5 mV Input offset current 2 mA max at IC e 1 mA
Five general purpose monolithic transistors
Low noise figure 3.2 dB typ at 1 kHz
Full military temperature range (LM3045) b55§C to a125§C
General use in all types of signal processing systems operating anywhere in the frequency range from DC to VHF
Custom designed differential amplifiers
Temperature compensated amplifiers
