Honeywell T991A1061 temp control proportional 160-260

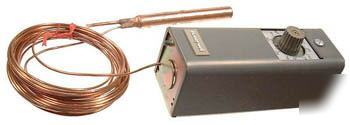

HONEYWELL T991A1061 TEMP CONTROL PROPORTIONAL 160-260 5' CAP
T991A1061 Modulating Temperature Controller, 160 F to 260 F (T991A 1061, T991A-1061)
For modulating control of water or air temperature in ducts, tanks and similar applications. Features
* Fast response models (for duct mounting) have coiled sensing element giving at least four times faster response than standard models.
* Ambient temperature compensated for the case and tubing.
* Sensing element capillary tubing allows remote mounting of sensing element.
* Setpoint may be read and adjusted through cover.
* Throttling dial inside case adjusts proportional throttling range.
Description Modulating Temperature Controller, 160 F to 260 F
Application Provide modulating control of water or air temperature in ducts or tanks
Setpoint Temperature Range (F) 160 F to 260 F
Setpoint Temperature Range (C) 71 C to 127 C
Analog Output One 135 Ohm Potentiometer
Dimensions (in.) 5 5/8 in. high x 2 in. wide x 2 1/4 in. deep
Dimensions (mm) 143 mm high x 51 mm wide x 57 mm deep
Sensor Element Copper bulb
Capillary Length (ft) 5 ft
Capillary Length (m) 1.5 m
Bulb Size (in.) 1/2 in. diameter x 4 3/16 in. long
Bulb Size (mm) 13 mm diameter x 107 mm long
Maximum Operating Temperature (F) 280 F
Maximum Operating Temperature (C) 138 C
Throttling Range (F) 3 F to 30 F
Throttling Range (C) 1.7 C to 16.7 C
