Racal 1260-100 modular vxibus switch carrier & includes

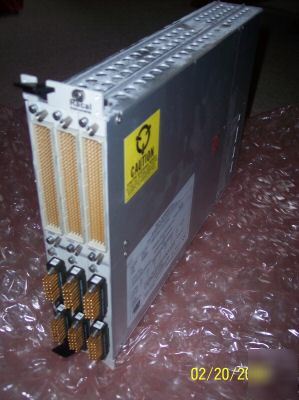

Racal Modular VXIbus Switch Carrier Model 1260-100 with Option 01T and includes 3 each of the following:
* Racal Model 1260-118 High Density Plug-In Switch Card
* Racal Model 1260-120 Power Switch Plug-In Module
Items have been tested and are in excellent working and physical condition.
TOTAL USED VALUE ESTIMATED AT $3200.00
1: The Racal 1260-100 is a Adapt-a-Switch Modular VXI Switch Carrier. The 1260-100 can be used with up to six of the 1260-1xx series switches. The unit has option 1T which allows the 1260-100 to controll up to 12 Adapt-a-Switch plug in cards.
Racal Modular VXIbus Switch Carrier Model 1260-100
* Easy Access, Front-loading Switch Modules
* Analog Bus Expands Matrices or Multiplexers
* Modular Package Allows up to 50% More Switching
* Accepts Six Adapt-a-Switch Plug-Ins
* EMI/RFI Shields Between Plug-Ins
2: The Racal 1260-118 High Density Plug-in Switch Card for the Racal 1260-100. The 1260-118 has 80 channels of SPDT switching, 100MHz bandwidth and 2A 220VDC or 250VAC.
3: The Racal 1260-120 is a Power Switch Plug-in for the Racal 1260-100. The 1260-120 is a 20 Channel of SPST high power switching and switches up to 13A.
