110 ton verson obi press 8" stroke air clutch

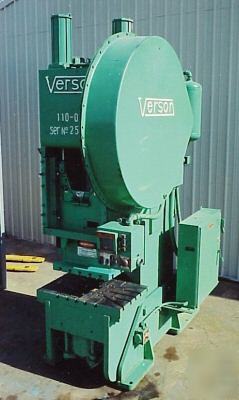

(1) Used 110 Ton VERSON Mdl. 110 O.B.I. Press; S/N 25061, Mfg. 1978
Capacity............................................. 110 Ton
Stroke................................................. 8"
Shut Height Bed to Slide.................. 18"
Slide Adjustment.............................. 5"
Bed Area............................................ 42" L-R x 27" F-B
Opening in Bed................................. " L-R x " F-B
Slide Face Area................................ 28" L-R x 21" F-B
Distance Bed to Floor...................... "
Throat................................................ "
Opening through Back..................... "
Speed................................................. 40 SPM
Main Drive Motor............................. HP
Electrical Characteristics.................
Overall Dimensions: " L-R x " F-B x " High
Weight: 34,000 Lbs. (estimated)
F.O.B...........Casa Grande, Arizona
