24" SURFACE GRINDER, Acer AGS-2448AHD 3 Axis
24" SURFACE GRINDER, Acer AGS-2448AHD 3 Axis

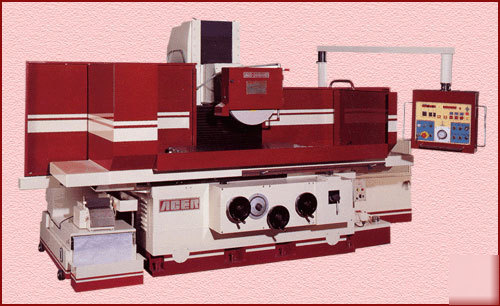

"NEW" ACER High Precision Surface Grinder
MODEL: AGS-2448AHD w/Microtend Z axis NC control
Working Surface of Table (W x L): 24" x 48"
Max. Grinding (W x L): 24" x 48"
Max. Crossfeed Travel: 24-1/2"
Distance Between Table Surface & Spindle Center: 33"
Variable Speed by Oil Cylinder: 16 - 80 FPM
Automatic Crossfeed Carriage Movement: 0 - 1"
Crossfeed Handwheel Dial: Per Graduation 0.001" - Per Revolution 0.2"
Auto Downfeed Micro Adjustment Dial: Per Graduation 0.0001"
Longitudinal Travel (from - to): 6 - 48"
Crossfeed Travel (from - to): 0 - 24-1/4"
Spindle Motor: 15 hp x 6 p (20 hp Optional)
Hydraulic Pump Motor: 5 hp x 6 p
Auto Crossfeed Motor: 1/4 hp x 6 p
Auto Downfeed Motor: 400 W DC Servo Motor
Grinding Wheel (O.D. x T x I.D.): 20" x 5" x 2"
Rotation Speed of Spindle (Horizontal): 1150 RPM / 60 HZ
Flow Rate of Coolant Pump: 40 L/Min
Max Load Capacity in Addition to Magnetic Chuck: 2,645 lbs.
Japanese spindle motor 15 HP (20 HP optional).
Spindle center to table top: 33".
3 axes auto movement with Microtend Z axis NC control.
Operation of manual downfeed depends on three step micro
Hitachi PLC electronic control.
Ball screw for crossfeed travel.
Crossfeed and table have double "V" slideways.
Spindle with six class 7 super precision angular contact ball bearings.
Grinding capacity is 24" x 48" (2448AHD)
Spindle head housing is laminated with Turcite B.
Coolant System w/Magnetic Separator & Paper Filter
24" x 48" Electro-Magnetic Chuck
Free Installation of machine in lower 48 states
Optional Accessories (call for pricing):
Walker or other brands of Electro-Magnetic chucks
Newall 2 Axis DRO with .0001" Resolution
Sony 2 Axis DRO with .00002" Resolution
Machine Location: HARRISON, NJ
