16" SURFACE GRINDER, Supertec STP-1834A 2-Axi
16" SURFACE GRINDER, Supertec STP-1834A 2-Axi
"NEW" SUPERTEC MODEL STP-1834A
2-AXIS AUTOMATIC HYDRAULIC SURFACE GRINDER

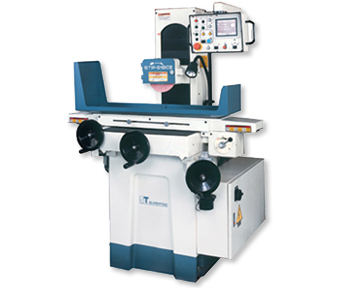

NOTE: PHOTO IS OF AN ADCII 3 AXIS AUTOMATIC MODEL
- All essential castings are rib reinforced to provide a rigid machine
structure for long lasting accuracy and stability.
- The precision cartridge spindle is equipped with 4 preloaded
class 7 (p4) super precision angular contact ball bearings to ensure
high accuracy and superior grinding finish.
- All guideways are Turcite-B coated and precisely hand scraped to
provide smooth movement for better accuracy and longer way life.
- The rigid wheelhead travels on wide-contact hardened and ground
- Crossfeed mechanism incorporate with a precision leadscrew,
AC inverter provides smooth, accurate crossfeed and allows criss-cross
grinding for better workpiece finish.
- Hydraulics, coolant systems are separated from machine to eliminate
- All moving surfaces and rotating parts are continuously lubricated
by an auto-lube system to ensure long service life and maintain
maximum accuracy. An alarm light will illuminate if oil pressure drops
Distance from table to spindle center: 18.3”
Max. table load (include Chuck): 1300 lbs
Standard magnetic chuck size: 16” x 32”
Table speed (infinite variable): 10-82 fpm
Auto increment feeds: 0.02” - 0.32”
Wheel size: 14”x 2”x 5” (D x W x Bore)
Net weight (approx.): 5950 lbs
Gross weight (approx.): 6600 lbs
Packing Dimension: 113” x 89” x 89” (L x W x H)
- Hydraulic system w/cooling fan
- OperatorÂ’s manual & parts lists
OPTIONS, TOOLING AND ACCESSORIES (call for pricing):
- Electromagnetic chuck (16”x32”)
- Auto demagnetizer (for electric chuck)
- Permanent magnetic chuck (16”x32”)
- Manual demagnetizer (for permanent chuck use)
- O.S. Walker ceramax permanent chuck (fine pole, 16”x32”)
- O.S. Walker LBP (fine pole, 16”x32”)
- Control for O.S. Walker chuck
COOLANT SYSTEMS AND DUST COLLECTOR
- Coolant system (58L capacity)
- Coolant system (98L capacity)
- Coolant system w/mag. sep. & paper filter (20L/min, 80L)
- Coolant system w/mag. sep. & paper filter (60L/min, 140L)
- Coolant system w/magnetic separator (20L/min, 58L)
- Coolant system w/magnetic separator (40L/min, 98L)
- Coolant system w/paper filter (20L/min, 80L)
- Coolant system w/paper filter (60L/min, 140L)
- Combine coolant & dust collector
- Manual parallel dressing attachment
- Hydraulic parallel dressing attachment
- Overhead parallel dress. w/auto compensation
- Two axis (Z & Y axis) digital readout
- One axis (Elevating) digital readout
- Balancing stand (straight type)
- Balancing stand (roller type, 20”)
- Variable spindle speeds for wheelhead by AC frequency control
Machine Location: HARRISON, NJ
