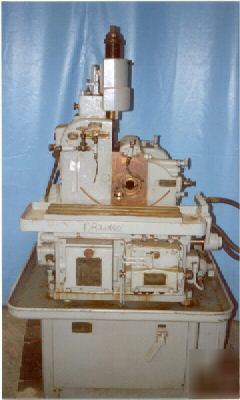

#0-8 cincinnati-milacron "rise & fall" prod mill #22212


#0-8 CINCINNATI-MILACRON "RISE & FALL"
HORIZONTAL-SPINDLE PRODUCTION MILL
New 1953, Serial No 5F1C5A-73, Model 0-8, Ltr OL
Table Dimensions (Overall) W x L....... 11.125" x 30.4375"
Table Working Surface, W x L........... 6.5" x 23.6875"
Table Longitudinal Travel (X-Axis)..... 8"
Spindle-Head Vertical Travel, Hand..... 4.5"
Spindle-Head Vertical Travel, Power.... 2.5"
Spindle-Center to Table-Top, Minimum... 1.5"
Spindle-Center to Table-Top, Maximum... 8.5"
Horizontal-Spindle-C/L to Table, Min... 3.375"
Horizontal-Spindle C/L to Table, Max... 4.375"
Quill Diameter......................... 4"
Spindle Nose Diameter.................. 2.875"
Spindle Taper.......................... #40 NSTD
(20) Spindle Speeds, Range............. 80 to 3000 RPM
(16) Longitudinal Table Feeds, Range... 1/2 to 20 IPM
Vertical Spindle-Carrier Feeds......... 1 to 10 IPM
Power Rapid Table Traverse............. 400 IPM
Spindle Motor, Horsepower/RPM.......... HP/1750 RPM
Motor, Horsepower/RPM.................. 1 HP/1750 RPM
Electrical System...................... 220-440/3/60
Floor Space Required, L x D............ 4'0" x 2'11"
Overall Height......................... 5'9"
Weight, Approximately.................. 1500 LBS
NOTE: Appears To Be In Very Good Condition
As Taken Directly from Government Stand-By Storage.
PRICE: F.O.B. OUR WAREHOUSE........... $2,450.00
All machines/equipment subject to prior sale.
