Okuma crown 762S, 1996, cnc lathe turning center, barfd

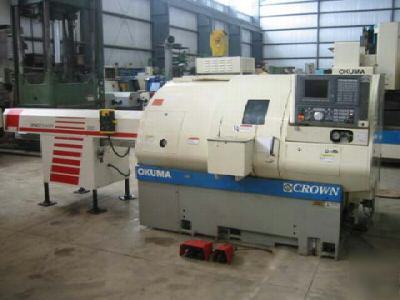

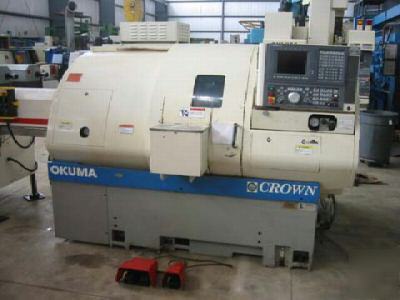

Okuma Crown 762S CNC Lathe Turning Center
Maximum Swing over Cross-Slide: 15.75"
Maximum Turning Diameter: 10.63"
Maximum Turning Length: 19.68"
Longitudinal Travel (Z-Axis): 20.47"
Feed Range (Infinitely Variable): 1-400 IPM
Rapid Traverse Rate (X-Axis): 590 IPM
Rapid Traverse Rate (Y-Axis): 787 IPM
Spindle Speed Range (1 RPM Increments): 75-4200 RPM
Approximate Dimensions: 104" L-R x 73" F-B x 69" H
Length: 5.5' (or total length of spindle)
Speed Rotation: According to possibilities of lathe
Material Advancement: By pneumatic pusher, adjustable feeding speed
Bar Stock Prep: No pointing required, only a deburr is necessary
Time of Auto Reload Cycle: 22 - 30 sec
Set-Up Time: About 2 mins to go from one dia to another + spindle liner change
Electrical Equipment: PLC driven 24 VDC; 200 - 575 V 50/60 Hz; Max 2 Amp; elec
Compressed Air Requirements: 60 - 120 psi (bar feed is equipped w/ pressure
This machine is being stored indoors in our Benton Harbor MI warehouse.
Loading is included in the price.
*Preliminary Specifications Subject to Verification.
