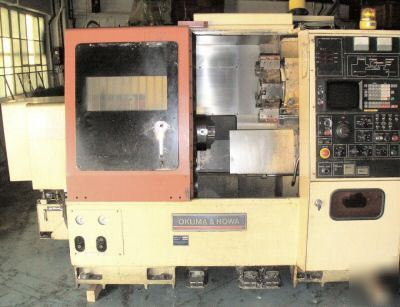

Okuma & howa with fanuc 6TB
SWING OVER BED.........................: 18.28"
DISTANCE BETWEEN CENTERS...............: 23.85"
MAX. TURNING DIAMETER..................: 8.35"
MAX. TURNING LENGTH....................: 23.05"
BED WIDTH..............................: 32.99"
TURRET/TAILSTOCK.......................: 14.71"/10.34"
SPINDLE CENTER HEIGHT..................: 41.33"
SPINDLE NOSE TYPE......................: JIS A2-6
FRONT BEARING DIAMETER.................: 3.98"
TAPER OF HOLE..........................: MT NO.6
HOLE DIAMETER..........................: 2.31"
SPINDLE SPEED RANGE....................: 35-3500 RPM
SPINDLE SPEED COMMAND..................: DIRECT RPM PRGRMMNG.
SPINDLE SPEED OVERRIDE.................: 50-120% - 10%
TURRET TYPE............................: V10 - BI-DIRECTIONAL
MAX. NUMBER OF TOOLS...................: 10
BORING BAR DIAMETER....................: 1.25"
X-AXIS TRAVEL..........................: 6.16"
Z-AXIS TRAVEL..........................: 23.85"
X-AXIS RAPID TRAVERSE..................: 317.92"/MIN.
Z-AXIS RAPID TRAVERSE..................: 476.88"/MIN
TAILSTOCK QUILL DIAMETER...............: 3.18"
QUILL BORE TAPER.......................: M.T. #4
QUILL TRAVEL...........................: 4.77" (M-FUNCTION)
THRUST POWER...........................: 90-525 KGF
MAIN SPINDLE MOTOR.....................: 11KW
HYDRAULIC PUMP MOTOR...................: 1.5KW
LUBRICATING PUMP MOTOR.................: .025KW
COOLANT PUMP...........................: .18 KW
OVERALL POWER REQUIREMENT..............: 30 KVA
MACHINE DIMENSIONS (APPROX.)...........: 119.82"X64.86"79.88"
MACHINE WEIGHT (APPROX.)...............: 8,800 LBS.
FANUC MODEL 6TB CONVERSATIONAL CNC CONTROL
