New jai cv-M30 1/2" monochrome double speed ccd camera

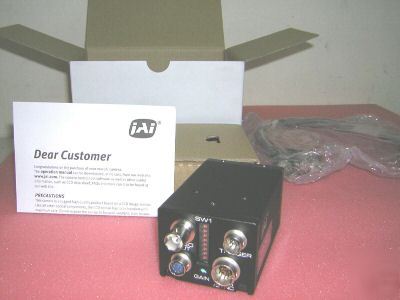

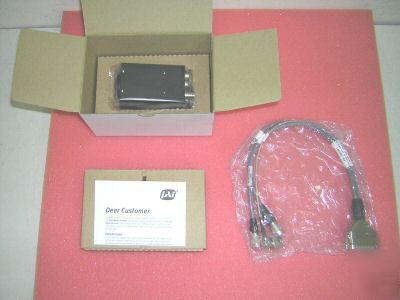

* JAI 1/2" MONOCHROME DOUBLE SPEED CCD CAMERA
* PORTS: VIDEO OUT, TRIGGER, DC IN/SYNC
- MP-40 TRIPOD ADAPTER PLATE + SCREWS
- NEW CABLE P/N 1951993 (753-26834-AD)
* THE CAMERA IS IN BRAND NEW CONDITION
* WARRANTY - GUARANTEED AGAINST DOA
The CV-M30 is a 1/2" monochrome CCD camera designed for industrial vision applications. The unique features include double speed scanning (31.5 kHz) with a horizontal resolution of 580 TV lines, and partial scan with reduced vertical resolution. The camera also has random trigger and internal/external HD/VD synchronization capability. All functions are accessible from the switch block on the rear panel.
Dimensions (HxWxL): 40 x 50 x 80 mm
* 1/2" monocrome partial scan
* Double speed scanning (120 fields/sec)
* Partial scanning up to 360 fields/sec
MORE INFORMATION ON THIS PRODUCT CAN BE FOUND HERE: http:// /EN/CameraSolutions/Products/Pages/CV-M30.aspx
