Wmw heckert model fss 450X1800 heavy duty vertical mill

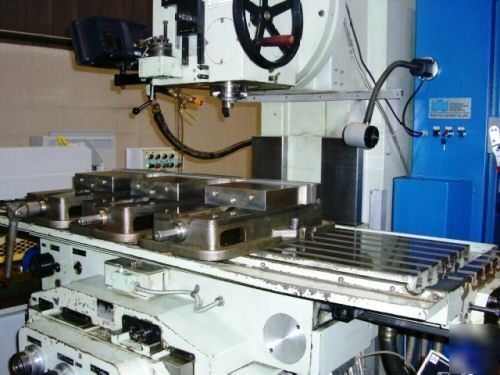

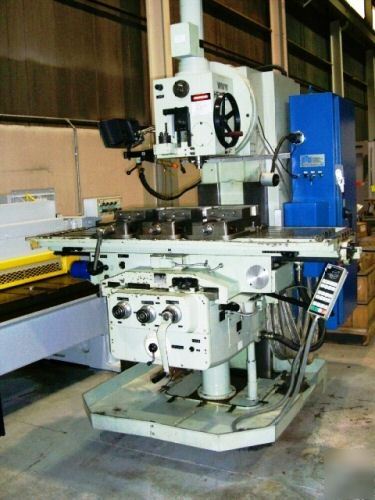

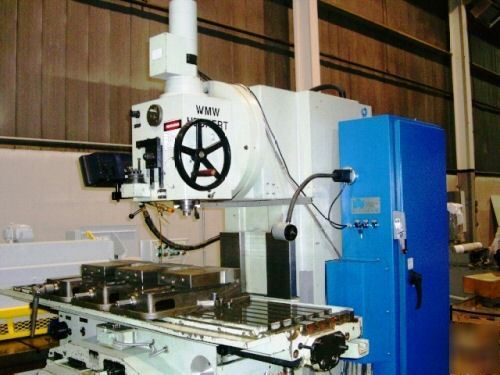

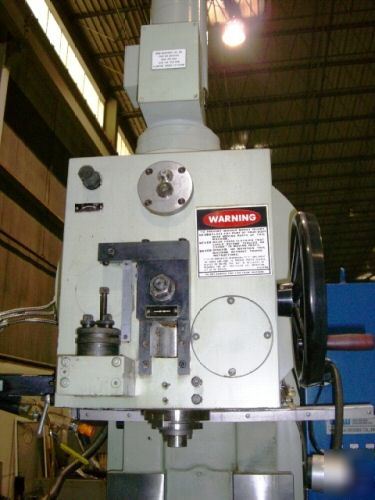

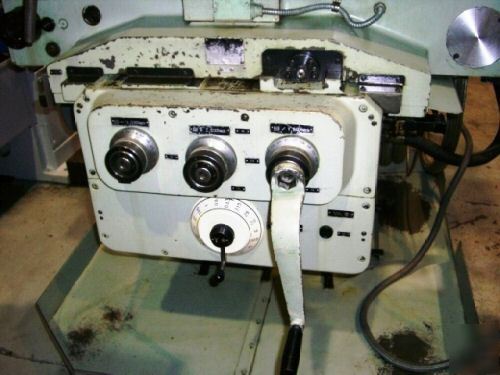

WMW HECKERT MODEL FSS F450x1800 HEAVY DUTY VERTICAL MILL
Serial No. 3344198/122 New 2001
Motor Driven With 20 HP, 3 Phase, 60 Cycle, 480 Voltage Spindle Motor.

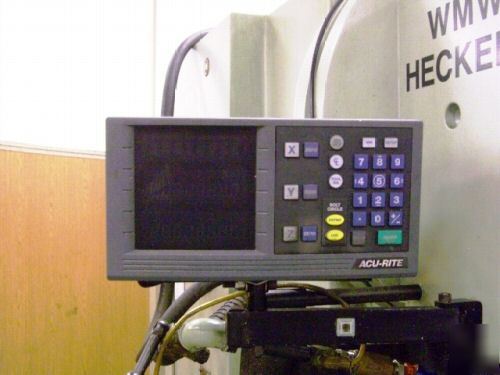

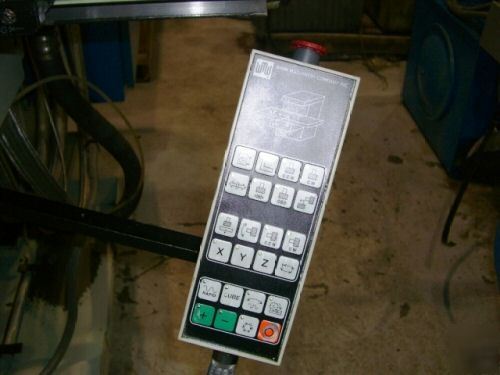

Acu-Rite 3-Axis DRO, Flood Coolant System, Inch Calibrations, Milling Safety Guard, X-Axis Guideway Covers, Automatic Lubrication System, Electromagnetic Reversing Clutch Drives, Automatic Hydraulic Backlash Eliminatory, Hardened Square Ways, Cross and Vertical Counterways Lines With Anti-Friction Material. Emergency Stop Button, Pushbutton Pendant Control of 3 Axes. Adjustable Cam Controls, (3) 8" Kurt Vises.
Table Size 17.71" x 71" (450mm x 1800mm)
Max Load On Table 3,300 Lbs (1,496 KG)
Spindle Speeds (18) 45-2240 RPM
Max. Workpiece Weight 3,300 Lbs (1,500 Kgs)
Approx Weight 11,000 Lbs (5,000 Kgs)
