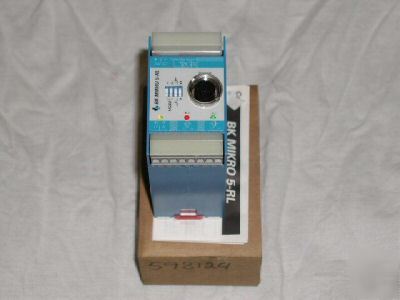

Bk mikro 5-rl control unit
Unused surplus part in original box w/ instructions
* Housing / Protection Type: Insulating material housing, protection class II, built-in unit, IP 20.
* Dimensions (WxHxD): 45 x 75 x 107.5 mm.
* Two steps for scanning intensity.
Output relay contacts selectable as NCC or NOC.
* Two LEDs "O.K." and "K.O."
* Automatic detection of zero position or high-handed fixation of zero position.
* Case Mounting: Sectional rail 35 mm – DIN EN 50022.
* Power Supply Voltage / Current: 120 or 230 VAC, 0.25 A
* Power Consumption: 6 VA Max.
* Control Voltage: 24 VDC (internal / external).
* Inputs (Galvanically isolated): Input current 5 mA approx., pulse duration 6 ms min.
* Switched Outputs: 2 x 230 VAC / 30 VDC.
* Making / Breaking Capacity: 500 VA / 60 W (max.)
Connections (Plug-in screw terminals): Power supply, relay outputs, control inputs.
