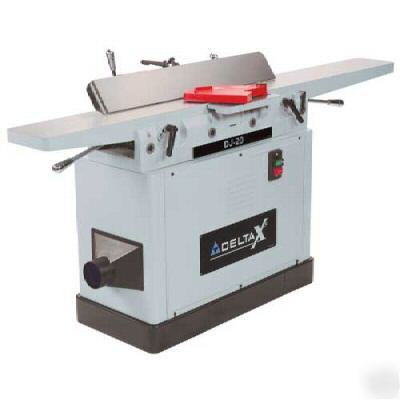

Delta 37-365X 8" DJ20 precision long bed jointer


This is the Brand New in the Box w/ 5 year warranty
If you do not receive your rebate in 10 weeks, please call (***)-335-8219 or check the status online. Please retain a copy of all submitted materials for your records.
Offer valid for U.S. residents only.
The 37-365X includes 1-1/2 HP, 120/240 Volts, 60 hz, Single Phase motor, 3-knife cutterhead module, cutterhead guard with wrenches, rabbeting ledge, tilting fence, push blocks, two pulleys, instruction manual, **Runs on sealed, lubricated-for-life ball bearings.
* Unique parallelogram support system allows the table to move in the same arc as the cutterhead when raised or lowered. This uniform, close clearance to the cutting blade acts as a more efficient chip breaker.
* Cast-iron assures less vibration; cabinet stand completely encases motor and pulleys to protect from dust and shavings.
* Specially-designed cast-iron fence is extra long for continued support throughout the cut. Fence is center-mounted and functions as a rear guard on narrow cuts.
* Modular cutterhead provides a consistently clean cut. Jack-screw arrangement allows easy replacement and adjustment of individual knives. In the event the entire cutterhead has to be removed, a new module can be fitted in place without production down-time.
* Extra-long infeed table provides a full 76-1/2" of work support.
Motor: 1-1/2 HP, 120/240V (wired 240V), 60 hz, 1 Phase TEFC, 3450 RPM
* Cut Capacity - Width: 8" (203 mm)
* Cut Capacity - Depth: 5/8" (16 mm)
* Rabbeting Capacity: 5/8" (16 mm)
* Cutterhead Speed: 5,500 RPM; 16,500 CPM
* Cutterhead Diameter: 3-3/8" (86 mm)
* Table Size: 76-1/2" (1943 mm)
* Table Length of front table (Infeed): 42" (1067 mm)
* Table Length of Rear Table (Outfeed): 32" (813 mm)
* Table Height: 32" (813 mm)
* Fence Size: 5" x 35" (127 x 889 mm)
* Fence Tilt: 45° in and out
* Fence Positive Stops: 90°, 45° in and out
Now available business leases as little as $1000.00 Lease Application
* Most orders are processed the same day but may take up to 1 extra business day to be processed to ensure your item meets quality assurance.
* We use Freight Truck Ground service to a business address with a forklift or residential address.
* The freight companies are also subject to a number of regulations one being that they are not to give any assistance in unloading from the truck, they are only responsible to get the products to the back of the truck. Lift-gate service may be available if the freight company we use offer it but there will be a extra charge of $75.00.
* Tracking numbers will be sent if requested in checkout notes. We are not responsible if your email account rejects any email from us as some email is sent in bulk and may be treated as spam.
* Any problems with hardware beyond our 7 business day return policy must be taken up with the manufacturer and/or carrier/network operator. The contact information to most manufacturers and carriers/network operators is listed in our Manufacturer Info section located below.
