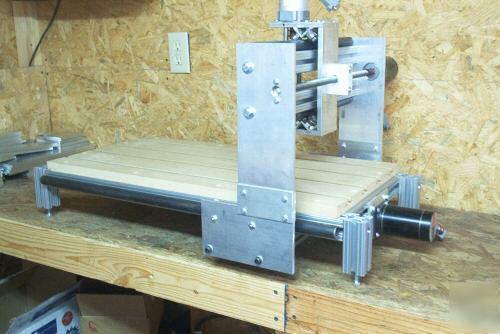

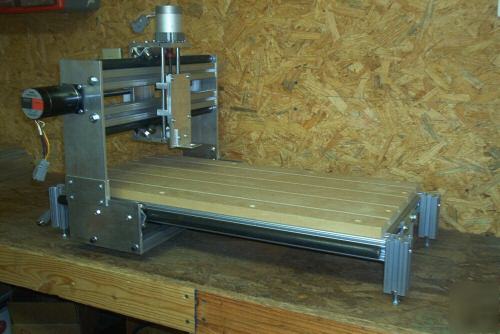

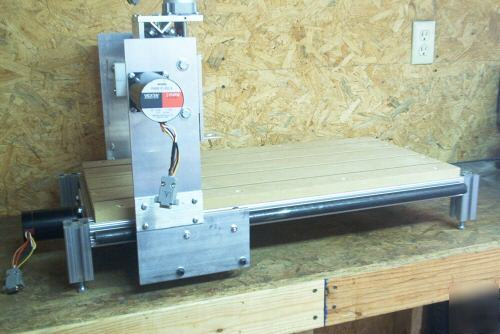

Custom built cnc router mill engraver
By popular demand im building custom size machines and it's going to work like this.
Complete working package,everything included except software,router or spindle and computer.By complete i mean, it includes stepper control box (full or half step internally changed with jumper) with power supply ,(X stepper 180oz y stepper 180oz z stepper 120oz) Cut size of this machine is X=12" Y=21" Z=3" with t slot mdf table. clearance under z is 3" .It can cut plastic, wood, and soft metals (aluminum, brass) machines now have 1/2-10 acme on x and y and 5/16-18 on the z with an updated 32 volt power supply SPEED is 70-100 inches a minute also included is the dremel mount for model 395 or 275 or rotozip at added cost made of aluminum very sturdy all metal construction
Thanks Again, Bernard Zehentmaier
Just wanted to let you know how much I'm enjoying the machine. It works great. It's very easy to send something to KCAM directly from AutoCAD. I've been vectorizing graphics and cutting them in wood and aluminum. I haven't tried cutting pockets yet, mostly been using an engraving bit to cut lines, but I'm going to try using a hatch pattern in Autocad to do this. I'm an estimator at a sign company, so I have access to acrylic and aluminum. I check the scrap bins on the way out at night to see what I can bring home to feed the machine. Thanks for providing such a great machine. I would probably never have tried CNC if it hadn't been available.
The router works great, it is a sweet desk top piece of equipment. As a retired Engineer, my assessment is, you did a fine job in designing the X, Y, and Z axis bearings, and guides, and using an acme thread lead screw shows attention to the finer detail.
Your construction methods are designed to keep your mat'l and construction cost down and still provide a very sound frame for the mill or router..
Video http:// /watch?v=dGZbNNZi_Vw
