Appleton code master 2 sodium explosion proof lamp
APPLETON CODE.MASTER 2 EXPLOSION PROOF HIGHER PRESSURE SODIUM 250 WATT LAMP LIGHT (041505505140)
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!

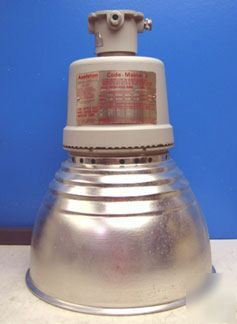

Appleton Code Master 2 Explosion Proof Higher Pressure Sodium 250 Watt Lamp Light
* Model Number: Code-Master 2
* Ballast Housing Catalog Number: CMBL250-MT
* Electrical Requirements: (120 Volts/2.8 Amps, 208 Volts/1.6 Amps, 240 Volts/1.4 Amps, 277 Volts/1.2 Amps) 60 Hz, 250 Watts
* Retail Price: $1,133.30 each
* Ideal for use in chemical and petrochemical plants, such as manufacturers of plastics, paints and thinners, in refineries, and in other process areas where ignitable vapors, dust, moisture and corrosive elements may be present.
* Suitable for use in wet locations.
* Fixtures operate safely in high ambient temperatures. For example, in Class I areas the 150W HPS fixture operates at a maximum temperature of 120°C in a 65°C ambient (100°C temperature in a 40°C ambient).
* Arrangement of heat-producing components results in more efficient heat dissipation for cooler fixture operation.
* Patented “wireless†design. Threading of fixture unit onto mounting hood makes electrical connection. Only wiring required is attaching two wires to connection block in mounting hood.
* Connection block is easily wired: (a) loosen two screws, (b) make wire connections, (c) re-position connection block.
* Safe, easy servicing without disconnecting any wiring. “Wireless†fixture unit easily threads off mounting hood for convenient servicing or for immediate replacement with a “stand-by†unit.
* Acme double lead threads speed installation and fixture removal from mounting hood– only half as many turns are required as for single lead threads. The threads do not stick, or gall, eliminating the troublesome problems often encountered with single lead threads during fixture unit removal.
* All threaded joints are flame-tight.
* Integrally-ballasted HID lighting fixtures; separate ballasts not required.
* Factory sealed. External seals not required.
* Strategic location of lamp socket in combination with the interior prism design of the glass globe, provides optimum light distribution and control.
* Superior corrosion-resistance, with epoxy powder coat finish.
* Porcelain socket with nickel plated phosphor bronze screw shell. Assures long trouble-free operation in high ambient areas.
* Choice of mountings: pendant, ceiling, bracket and stanchion.
• Fiberglass reinforced polyester reflectors, in standard dome, deep dome or 30° angle, are ideal in installations where luminaire is subject to exceptionally severe corrosive atmospheres. The high bay aluminum reflector is indicated in installations where mounting height from work plane ranges from 20 to 30 feet. * Optional guards protect globes from damage. Secured to fixture with three screws.
* Variety of light sources: high pressure sodium, mercury vapor, metal halide and pulse start metal halide. HPS and MV are excellent where long lamp life is required. HPS provides high lumens per watt and is less expensive to operate. MH is desirable where colors of illuminated areas must be close to natural. PSMH provides better color rendition, increased lumen output, longer lamp life, faster re-strike after momentary power interruption when compared to standard metal halide systems.
• Wide range of wattages and voltages. * Code•Master 2 HID fixture with in-head ballasts available for 50- to 400-watt lamps. 50W HPS fixtures have dual-tap ballast (120 and 277V). All other wattages have multi-tap (120, 208, 240 and 277V)
* Ballasts operate at low temperatures: MV, MH and PSMH – minus 20°F, HPS minus 40°F.
* 50W thru 150W high pressure sodium ballasts are high reactance, high power factor type.
* 250W and 400W high pressure sodium, all metal halide and all mercury vapor ballasts are constant wattage autotransformer (CWA) type.
