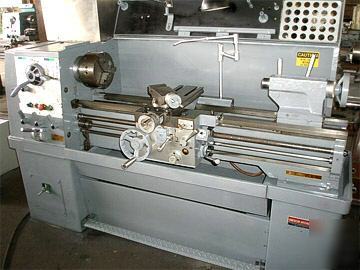

American turnmaster geared head engine lathe 13X40"
SWING OVER CROSS SLIDE: 8-1/4"
SPINDLE BORE (MAXIMUM BAR DIAMETER): 1-9/16"
(16) SPINDLE SPEEDS: 35 TO 2500 RPM
(45) ENGLISH THREADS: 2 TO 72 TPI
(39) METRIC THREADS: 0.2 TO 14 MM
(21) DIAMETRAL THREADS: 8 TO 44 DP
(18) MODULE THREADS: 0.3 TO 3.5 MM
LONGITUDINAL FEEDS: 0.002 TO 0.067" (0.05 TO 1.7 MM)
CROSS FEEDS: 0.001 TO 0.034" (0.025 TO 0.85 MM)
INDUCTION HARDENED BED WAYS IN GOOD CONDITION
GRADUATED ENGLISH / METRIC DIALS IN ALL AXES
INCH & METRIC THREADS AND FEEDS
PUSH BUTTON TYPE CARRIAGE OILER SYSTEM
8" PRATT BURNED 3-JAW CHUCK WITH 2-PIECE JAWS WITH HARD REVERSIBLE TOP JAWS
10" PRATT BURNED 4-JAW CHUCK WITH 1-PIECE HARD REVERSIBLE JAWS
BUILT IN COOLANT PUMP AND SYSTEM
5 HP 2-SPEED MAIN MOTOR, 13/8 AMPS
WIRED FOR 3 PHASE, 60 CYCLE, 220 VOLTS ONLY
OVERALL SIZE: 83" L-R X 36" F-B X 59" HIGH X 2,900 LBS.
