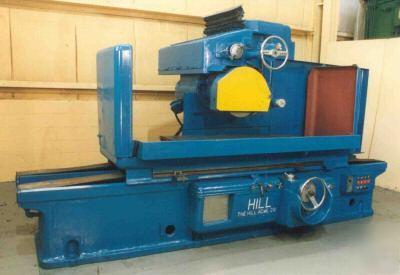

18" x 60" hill acme horizontal surface grinder
18" X 60" HILL ACME HORIZONTAL SURFACE GRINDER
SERIAL ........................................... G-332
GRINDING CAPACITY ................................ 18" X 60"
MAXIMUM WORK HEIGHT UNDER NEW WHEEL .............. 18"
HYDRAULIC TABLE TRAVEL ........................... 0 TO 100 FPM
INCREMENTAL OR CONSTANT CROSS TRAVEL ............. 0 TO 10 FPM
AUTOMATIC DOWN FEED @ TABLE REVERSAL ............. .00025" TO .003"
GRINDING WHEEL SIZE .............................. 20" X 4" X 10"
ELECTRO-MAGNETIC CHUCK SIZE ...................... 18" X 61-1/4" X 5-5/8"
ELECTROMATIC VARIABLE HOLD MAGNETIC CHUCK CONTROL. YES
HYDRAULIC CROSS & LONGITUDINAL FEEDS ............. YES
POWER SPINDLE ELEVATION .......................... YES
INCREMENTAL DOWN FEED ............................ YES
TRICO AUTOMATIC LUBRICATION ...................... YES
COOLANT WITH MAGNETIC SEPARATOR .................. YES
SPINDLE MOTOR .................................... 15 HORSEPOWER
HYDRAULIC MOTOR .................................. 7-1/2 HORSEPOWER
CALL US AT 800/MACHINE (800/622-4463) TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
