Liquid control 1/4" inlet/outlet dispensing spool valve

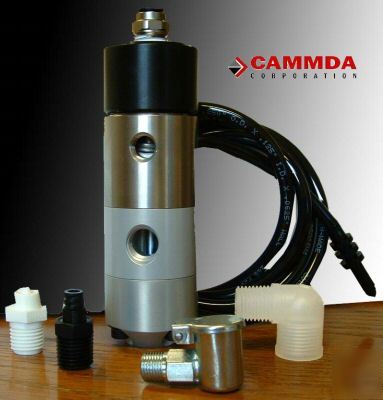

Aluminum Precision ¼ NPT Liquid Dispensing Spool Valve
This Valve is a balanced type ON/OFF segmented spool valve. Applying a minimum of 50 psi air pressure to the air inlet will force the spool forward, allowing the material to be dispensed. Releasing the air pressure allows the internal spring to close the valve as well as create a “NO DRIP” suck back action at the fluid outlet. The normal air circuit used to operate the valve incorporates a three-way air valve.
Oil or solvent cup mounted to the fluid chamber of the valve body provides a liquid seal for spool shaft when using moisture sensitive material.

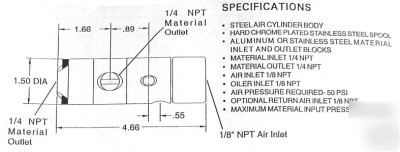

For Complete Measurements Refer to Photos Provided.
Applying Experience, Dispensing Solutions
