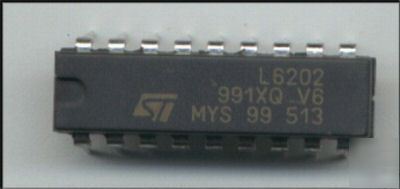

6202 / L6202 / st micro dmos full bridge driver
Now over 1,000 items in our Store!
* 5A MAX PEAK CURRENT (2A max. for L6201)
* TOTAL RMS CURRENT UP TO L6201: 1A; L6202: 1.5A; L6203/L6201PS: 4A
DS (ON) 0.3 W (typical value at 25 °C)
* CROSS CONDUCTION PROTECTION
* OPERATING FREQUENCY UP TO 100 KHz
The I.C. is a full bridge driver for motor control applications realized in Multipower-BCD technology which combines isolated DMOS power transistors with CMOS and Bipolar circuits on the same chip.
By using mixed technology it has been possible to optimize the logic circuitry and the power stage to achieve the best possible performance. The DMOS output transistors can operate at supply voltages up to 42V and efficiently at high switching speeds. All the logic inputs are TTL, CMOS and
