Schauer speed lathe w/tooling 5C collets 5C 3 jaw chuck

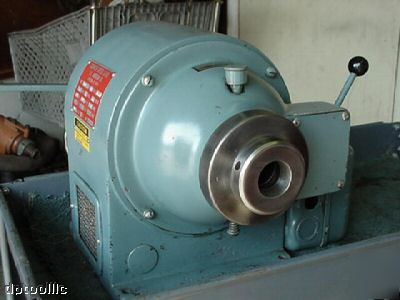

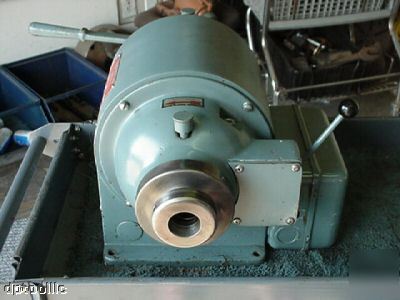

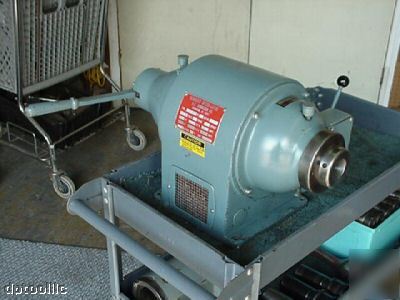

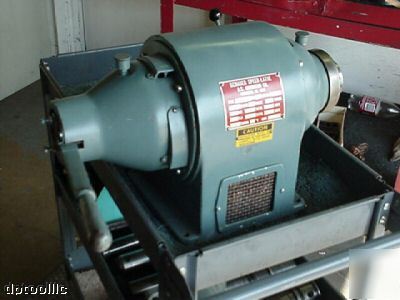

Schauer Speed Lathe from D.C. Morrison with tooling
A versatile tight toleranced lathe that can be set up anywhere easily

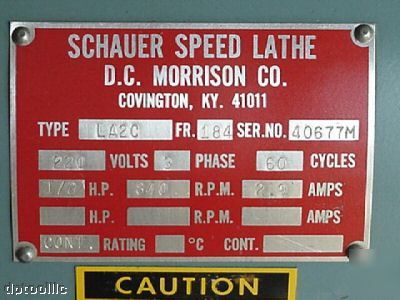

· Model Number: LA2C Price: $1,375.00
· Motor: ½ horsepower, 840 rpm’s, 2.9 amps, rated continuous duty

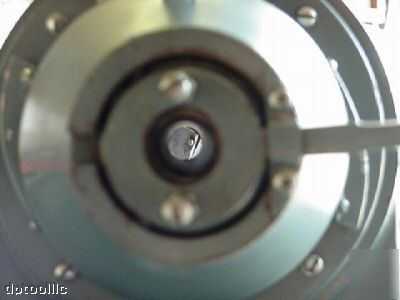

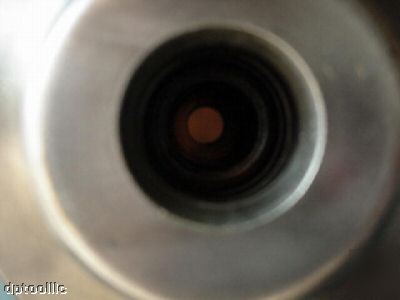

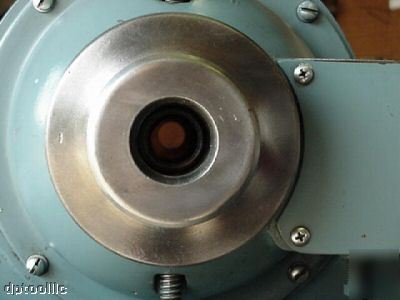

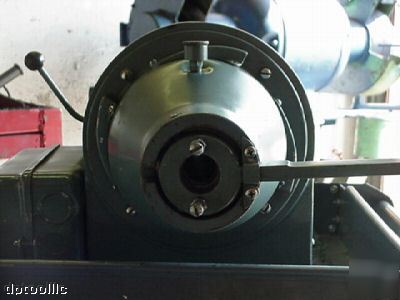

· Spindle Taper: 5c Lever operating collet fixture
· Machine Size: 21†long, 13†tall, 28†wide
· Mounting Base Plate: 4pcs of a ½†hole that are 8-1/4†between centers
· Machine will come with a parts breakdown, operating & maintenance instructions
· If you should ever need replacement parts, they are available from the factory
· Machine has a built in lubrication grease cup which you rotate one turn a week max
· This lathe can be set up anywhere with many variety of fixture combination to be used to do special project part machining.
· To set the lathe up bolt it to any solid support
· The electrical supply connects through a three-pole fused line switch to the starter mounted on the unit. Use 20 amp fuses in the line switch
· Spindle must rotate in a counter clockwise direction
· Equipped with a magnetic clutch & Brake
· Speed changes are accomplished by the use of a speed selector switch or mechanically through a variable speed drive or a combination of both, giving a wide range of speeds with infinite control.

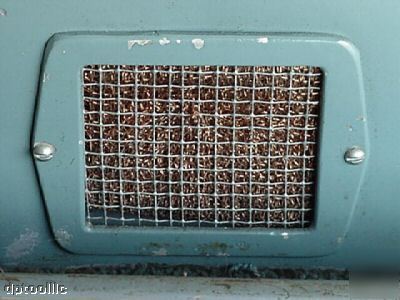

· A filter unit is mounted into the base to prevent the entrance of injurious dust and metallic particles. Filter cleaning instructions are in the maintenance instructions.
· Tooling included: 15pc set of 5C round collets, 1/8†to 1†by 16ths-.0005 accuracy
· A 5C mount 3†3-jaw self centering precision lathe chuck with internal/external jaws
