> “valumaster†14 1/2" x 40" gap bed geared head lathe

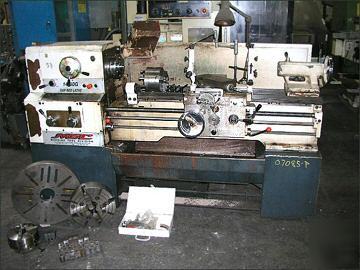

“valumaster†14 1/2" x 40" gap bed geared head lathe
Swing Over Cross Slide: 7-1/2"
Effective Length of Gap: 7-7/8"
Tailstock Quill Taper: #4 Morse
Tailstock Quill Travel: 5-1/2"
16 Spindle Speeds: 22 to 1800 RPM
Feed Changes: .00157" to .080" Per Revolution Longitudinal
.00075" to .040" Per Revolution Cross
One Shot Lubrication System for Machine Ways
Threads: (35) English 80 to 1-3/4" TPI
(30) Diametral 160 to 3-1/2 DP
Induction Hardened & Ground Bed Ways in Good Condition
4" Diameter Steady Rest with Solid Bronze Tips
Follower Rest with Bronze Tips
Headstock Spindle Reducer Bushing to #4 Morse Taper
4-Position Turret Type Carriage Feed Stop
Graduated Dials on Each Axis Handle
8" 3-Jaw Chuck with Camlock Back, 2-Piece Jaws with Hard Reversible Top Jaws
13" 4-Jaw Chuck with Camlock Back, 1-Piece Hard Reversible Top Jaw
(14) Assorted Used Soft Chuck Jaws
8" 3-Jaw Chuck, Plain Back, No Adapter Plate, with 1-Piece Hard Jaws
1 Set of OD and 1 Set of ID Chuck Jaws for 8" 3-Jaw Chuck
19" Faceplate with Camlock Adapter
7-1/2 HP Motor, Wired for 3 Phase, 60 Cycle, 220 Volts Only
Overall Size: 85" L-R x 38" F-B x 48" High x 3200 Lbs.
