New vibratory tub deburring machine pfs 1200 wt

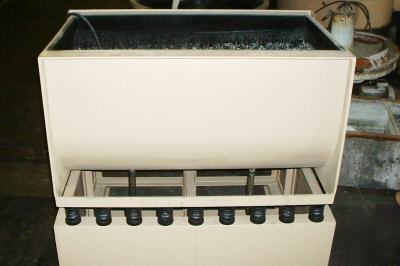

New PFS 1200 WT Tub Vibrator
can perform a variety of deburring, radius and surface refinements. An unlimited range of applications are possible such as pre-plate finishing, descaling, deflashing, cleaning, grinding, and burnishing of ferrous and non ferrous materials.
WT 800 Model: http:// /machines/tubs/index.asp
* Machine: 52 " length x 48" width x 54" height
* Tub Size: 48 " length x 24" width x 26" depth
* Tub Process Capacity: 12 cubic feet
* Second picture displays machine with optional equipment as priced below.
* 90 degree mounted drive system with adjustable amplitude.
* 3/4" thick 90 durometer polyurethane lining.
* 2-4 inch pop-in liquid drains.
* Compound spray system and nozzles
* Heavy duty coil spring suspension with urethane mounts to reduce spring fatigue and noise.
* All steel tub construction, welded and stress relieved.
* 7.5 H.P. motor 1725 R.P.M., /230/460 volt, Three phase, 60 cycle.
* On/off push button switch.
1. Removable tub dividers (ea.) $605.00
2. Additional liquid drains (ea.) $103.95
3. Media discharge door $1,138.50
4. 0-12 hour timed Switch $401.50
5. Automatic compound metering system $1,149.50
6. Automatic grease lubrication $1,815.00
7. Vinyl sound cover $1,386.00
8. J.I.C. Control Panel
* with 2110 volt outlets,
* 0-6 hour timer,
* start/stop push button,
* compound system selector switch,
* fused disconnect in a NEMA
* 12 enclosure and stand $2,084.50
* Further information: http:// /
