New powermatic PM3000 14" tablesaw w/accu-fence

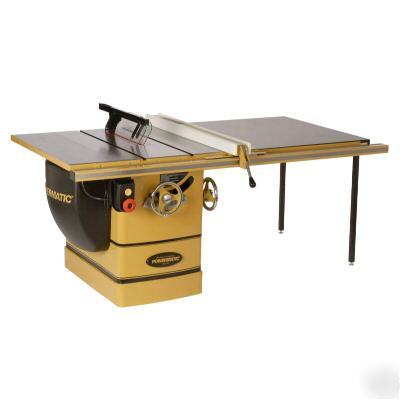

Powermatic PM3000 14" Tablesaw, 5HP 1PH, w/ 50" Accu-Fence System (Stock 1720304K)
Also available in 7.5HP, 3PH, 230/460V, Prewired 230V (Stock 1720305K)
The PM3000 brings heavyweight performance and patented innovations to the 14-inch table saw arena. The riving knife rises and lowers with the blade, substantially reducing kickback risk; and both riving knife and blade guard each have a quick-release, so mounting and removing them is fast and tool-free. A wide-stance trunnion and concave teeth on the trunnion gears promote smooth blade raising/tilting. The Poly-V drive belt system results in quieter, more efficient power transfer with virtually no vibration and less heat build-up. A push-button arbor lock is accessible from above the table top and eliminates the need for dual arbor wrenches. Easy-access controls include jumbo stop switch. Sloped cabinet floor and built-in port for dust extraction. Comes standard with a 33†DuramineTM surfaced extension table and legs.
Quick release riving knife greatly reduces binding/kickback risk
Push button arbor lock (patent pending) for rapid blade change
Poly-V drive belt system delivers efficient, quiet operation
Wide stance heavy-duty trunnion for stability and smooth blade positioning
Adjustable angle indicators (patent pending) on the blade bevel scale for repeatable bevel cuts
TEFC motor with magnetic controls
Standard left and right cast iron table wings
Accu-Fence® System with 50" to the right cutting capacity
Blade, power cord plug not included
Distance Between Sliding Table and Blade (in.)
Dust Collection Minimum CFM Required
Maximum Depth of Cut at 45 Degrees (in.)
Maximum Diameter of Dado (in.)
Maximum Rip Left of Blade (in.)
Maximum Rip Right of Blade (in.)
Deluxe, micro adjustable with aluminum extruded fence
Table in Front of Saw Blade at Maximum Depth of Cut (in.)
Table Size with Standard Extension (L x W/in.)
Table Size without Extension (L x W/in.)
Table Size without Wings (L x W/in.)
