Acer - vertical turret mill - model # 3VK e-mill

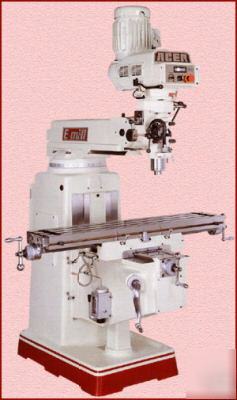

Acer - Vertical Turret Mill - Model # 3VK E-mill Series
* 3 HP Spindle Motor: U.S. made “Baldor Super Eâ€
* Inverter Control Variable Speeds: ToshibaU.S. made Allen-Bradley Electrical Components
* Precision Grinding Head Housing; Electric Brake
* Precision Spindle with ABEC-7 Bearing
* Chrome Plated & Precision Ground Spindle Quill
* Precision X, Y Axes & Knee by Hardened & Ground Dovetail Ways to HRC 52°
* Rigid Meehanite GA-50 Casting ; One Shot Lubricator
Acer 3VK E-Mill Series Vertical Turret Knee Mill-all dovetail ways 10" x 50" table-Can run Three phase or Single phase
“Newall†DRO (C70, 2-axis, 16â€x36†travel, .0002†Res. Scale)
“Sony†or Acu-Rite DRO (Millman, 2-axis, 16â€x36†travel, .0002†Res. Scale)installed
“A-Class†Power Feed Long/Cross/Knee
“Servo†Longitudinal Feed (M-9108-140 / M-9108-150)
“Servo†Cross Feed (M-9508-140 / M-9508-150)
“Servo†Knee Feed: (M-9821-140 / M-9811T - 200)
Cross Feed $200 / Knee Feed $300
12†Rotary Table (Vertical & Horizontal)
Coolant System (Not Installed)
R-8 Collet ( 1/8†– 3/4†; 11pcs/set)
Maxi-Torque Auto-Air Power Draw Bar add $200 installed;price(Not Installed)
“Kurt†Mechanical Air Power Draw Bar add $200 installed; price(Not Installed)
“Ericson†Quick Change Spindle #30 Taper (Installed Upgrade)
Riser Block (4â€/6â€/8â€) Install Fee$200
440-480 Volt Frequency Inverter
Special Package includes E-mill 3VK with "Newall DRO"(2-Axis, 16x36" travel, 0.0002" scale) and "A Class" Longitudinal power feed & pre-installation at ACER Warehouse.
