High purity gas mixing manifold w/nupro valves N097B

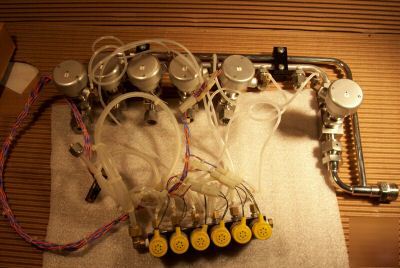

Nice condition High Purity Gas Mixing Manifold. All stainless steel construction. Includes Swagelok Nupro Proportional normally closed pneumatic actuated valves, solenoid control valves and manifold for operating the Nupro valves, a 6 position gas manifold with bypass line and a wiring harness terminating with a 25 pin D-shell connector. Four of the six positions on the manifold are fitted with Nupro SS-4BK-TW-91NC pneumatic valves, the main control valve and the bypass valves are Nuporo SS-6BK-91NC pneumatic valves. The pneumatic valves are controlled by a solenoid valve manifold of 6 Clippard EV3M valves operating on 24Vdc. All connections are VCO type in both 4 and 6 sizes.
