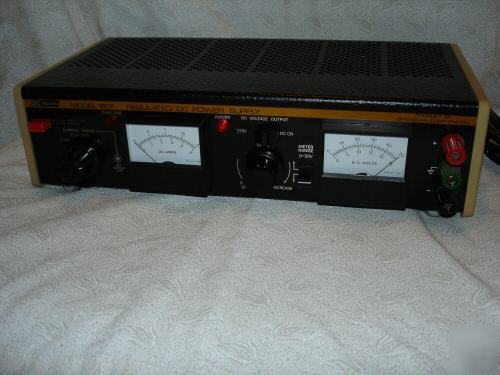

BK Precision 1601 Solid State Regulated DC Power Supply

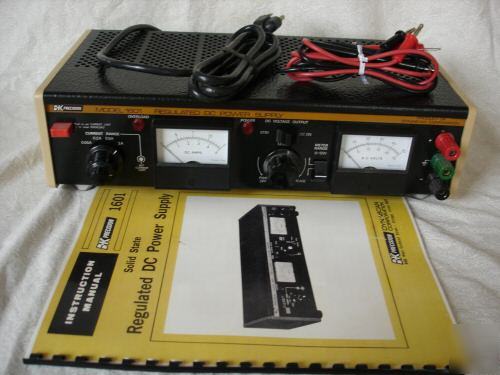

This regulated DC power supply is a versatile, laboratory quality instrument which provides regulated dc voltage and current outputs of 0 to 50 volts and 0 to 2 amperes respectively. It can be used to power a vast assortment of items in the fields of electronics servicing, electronics manufacturing, electronics design engineering and electronics education. Comes with test cables and a copy of the manual.
OUTPUT VOLTAGE …………………………… 0-50 VDC continuously variable. Two ranges, 0-25 and 0-50 VDC.
OUTPUT CURRENT …………………………….. 0-2 amperes. Four Ranges: 0-50 mA, 0-0.2A, 0-0.5A, and 0-2A.
CURRENT LIMIT ADJUSTMENT ….. ……….. 5% to 100% of each current range.
LOAD REGULATION …………………..………… Maximum 0.1%, typical 0.07%.
LINE REGULATION ……………………..………… Maximum 0.1%, 0.02% typical, at output voltage of 50 VDC and output current of 2 amps from 105-125VAC.
RIPPLE ………………………………………………….. 5 millivolts peak-to-peak maximum.
CURRENT DERATING …………………………… .02 A/Degrees Celsius above 25 deg C. ambient temp. (2 A range only).
SIZE ………………………………………………………. 14 1/8 “ x 3 7/8” x 10” inches deep.
NET WEIGHT ………………………………………… 11 lbs.
* FULLY SOLID STATE*, * CURRENT LIMITING/OVERLOAD PROTECTION*, *SIMPLIFIED CURRENT LIMIT SETTING*, *0-50 VDC*, *0-2 AMPS*, *DUAL METERS*, *FOUR CURRENT METER RANGES*, *TWO VOLTMETER RANGES*, *STANDBY—DC ON SWITCH*, *ON-OFF CONTROL*, *PILOT LAMP*, *MECHANICAL PRE-PEGULATOR*, *FLOATING OUTPUT*, *REVERSE POLARITY PROTECTION*, *BINDING POSTS*, *ATTRACTIVE APPEARANCE*, *EASY TO OPERATE*
