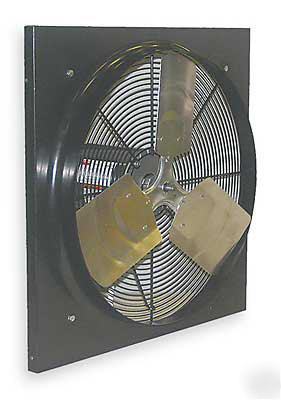

New 16 inch medium duty exhaust fan steel frame


Exhaust Fan, Medium Duty Direct Drive, Propeller Dia 16 In, 1170 CFM @ 0.000-In SP, @ 0.125-In SP 885, @ 0.250-In SP 560, 13.6 Sones @ 0.125-In. SP @ 5 Ft., Max Ambient Temp 104 Deg F, 115 Volts, 60 Hz, 1 Phase, Operating Amps 1.6, Motor RPM 1550, HP 1/20, Bearing Type Sleeve, MotorType Shaded Pole, Height 20 In, Width 20 In, Max Depth 6 3/16 In, Vertical Mounting Position, Frame Material Steel, Propeller Material Stamped Aluminum, Number of Blades 3
Sones @ 0.125-In. SP @ 5 Ft. 13.6
Motor Enclosure Totally Enclosed Air-Over
Frame Finish Baked On Gray Polyester
Wire Guard Finish Baked On Gray Polyester
Propeller Material Stamped Aluminum
Agency Compliance UL Listed, AMCA Licensed
For Use With General Ventilation Applications



New 16 inch medium duty exhaust fan steel frame
