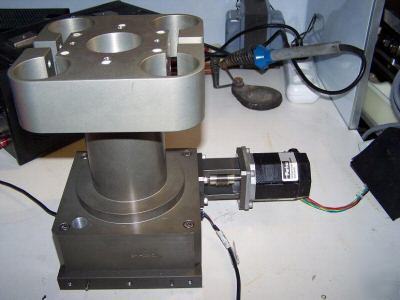

Stepper motor rotary table sherline taig bridgeport cnc


Item is in a very good condition. The gear has 50 theeth, thus for a 200 step per revolution it gives 0.036 degree per step. Lower resolutions can be achieved by microstepping.
Motor Spec: 1.8 degree, compumotor, OS series, Model: OS22B-SNFLY, 1.54A bipolar, 8 wire motor, but has been wired as bipolar 4 wire connection (Parallel), you may change the wiring to Series connection and use unipolar deivers if you wish.
Overall dimentions(excluding the motor): ~ 8 x 6 x 9.5 inches.
The bottom plate is removed in the following picture to show inside the assembly, as you see there are two optocouplers for pisition sensing provided too:
