Hp 54502A 400MHZ digitizing scope #2934A01437

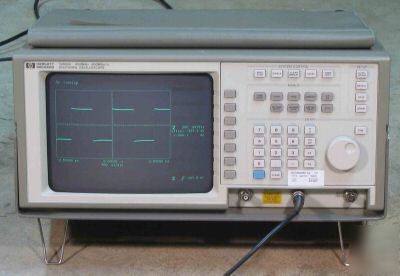

This is an Agilent HP54502A 400 MHz Oscilloscope.
Calibration Tag Dates: 8/2/2006 to 8/2/2007 (however seal was opened)
Unit Serial Number is 2934A01437
Accessories include power cord and gray pouch.
Operating Guide and Service Manuals can be downloaded for free from the Agilent website.
* Repetitive Bandwidth - dc to 400 MHz
* Single Shot (Realtime) Bandwidth - dc to 100 MHz
* Maximum Vertical Sensitivity - 2 mV/div
* Maximum Sample Rate - 400 MSa/s
* External Trigger - 1 channel
* Ability to view signal events prior to trigger
* Instant hardcopy output when connected to GPIB printer (not included)
* Autoscale for automatic setup
* Automatic Measurements with user defined and statistics
* Waveform math ( +, -, X, vs, invert, only )
* 4 nonvolatile set-up memories
* 4 nonvolatile waveform memories
