Hp 8673D signal generator, 50 mhz - 26 ghz

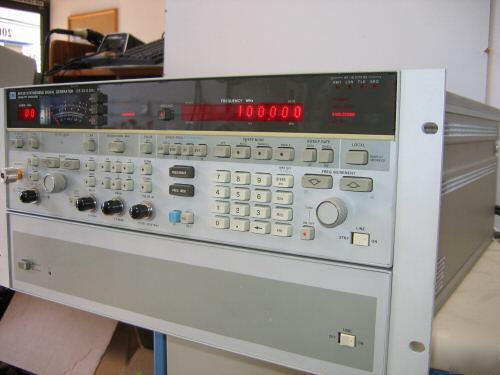

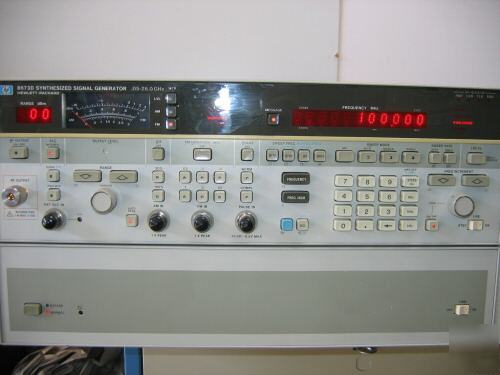

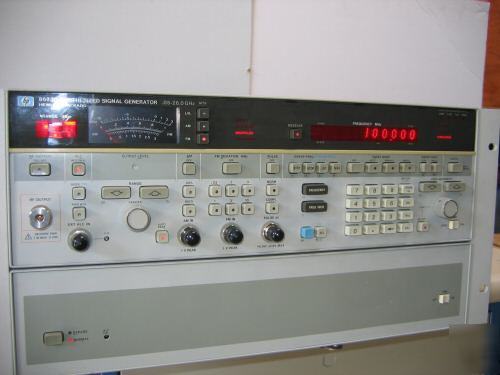

HP 8673D Signal Generator, 50 MHz - 26 GHz
* Description: The HP (Agilent) 8673D Microwave Signal Generator covers the frequency range from 50 MHz to 26 GHz in 4 bands. Time base accuracy is <0.0000000005 /day . Output is +8 to -100 dBm from 2 to 18GHz, +4 to -100 dBm from 18 to 22GHz, and 0 to -100 dBm from 22 to 26GHz. This generator has excellent spectral purity specification. Pulse, Amplitude and Frequency modulation are all available. All functions are controllable via an HP-IB interface.
* Frequency Range of 50 MHz to 26 GHz with a frequency resolution of 4 kHz
* Frequency Switching Time 50 ms
* Time base stability 0.0000000005 /day
* External Frequency Reference 10 MHz
* Minimum Output Power -100 dBm
* Maximum Output Power 6 dBm
* Output Level Switching Time 25 ms
* Minimum Single-Side-Band Noise -98 dBc/Hz
* Maximum Single-Side-Band Noise -52 dBc/Hz
* Harmonics (noise) -60 dBc
* Non-harmonics (noise) -60 dBc
* External Modulation Inputs(Types) No
* Sweep Modes Auto,Manual,Single
* Maximum points of step sweep 9999 pt/sec
* Cosmetic Condition: Good - Excellent
* Working Condition: Presumed Good but Untested
* Other Comments / Notes: None
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
