SPF05 dds function/arbitrary generator/counter 5MHZ

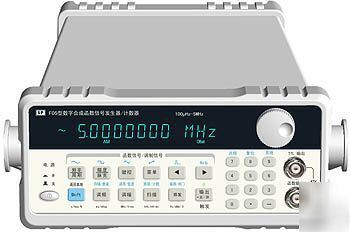

SPF05 Function/Arbitrary Generator/Counter
SPF05 DDS Function/Arbitrary Generator/Counter, which uses Direct Digital Synthesis(DDS) Technology to provide high resolution, high accuracy, high stability.
High resolution, high accuracy, high stability.
It can be used for digital sweep instrument with an oscilloscope.
100uHz - 5MHz (Sine and Square)
1uHz - 100KHz (Triangle,Ramp,Pulse,etc)
1mVp-p-10Vp-p (50 ohm)(f > 40MHz)
1mVp-p-2Vp-p (50 ohm) (f > 40MHz)
2mVp-p-20Vp-p (1M ohm ) (f <=40MHz)
2mVp-p-4Vp-p (1M ohm) (f > 40MHz)
Sine, Square, Pulse, Triangle, Ramp, TTL pulse, Sweep,FM,AM, Burst, FSK,PSK and others. (more than twenty wave forms stored in nonvolatile memory)
Harmonic Distortion of Sine Wave
12-character highly visible VFD
All our AT serial RF Signal Generators are provided one year warrantee by us from the date you make a purchase. An replacement or repairment will be provided by us for free when a faulty is developed within the warranty.
Note: please leave contact phone number ,so we can smooth and fast delivery.
