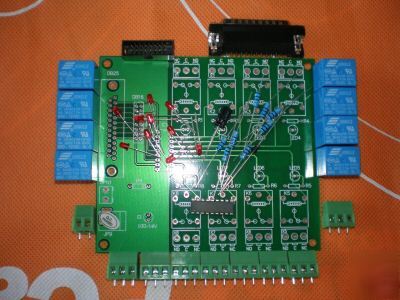

8 Channel Relay Driver Board KIT - PC AVR PIC
1. 1 x PCB, 1 x ULN2803A, 1 x 16 Pin Header
2. 8 x Relay, 8 x LED, 8 x 3 Pin Screw Terminal Block
3. 1 x 2 Pin Screw Terminal Block, 1 x DR-25 Male connector
5. CD Rom with User Manual, Schematic, Demo software & utilities
* 8 Channel relay with NO, C, NC connections, switch upto 240V / 5A or 110V / 10A
* LED relay status indicators
* 3 Pin Screw terminal blocks for relay output
* 2 Pin Screw terminal blocks for 12V DC power supply connection
* Use ULN2803A for relay driver
* Each relay is switched on or off by one bit of the output byte to the parallel printer port or 20 Pin IDC Header
* DOS based utilities to control the relay board with batch file
* Windows based program to test the relay board
* Linux based program to use with Linux box
* OR Write your own software with a DLL from HERE
