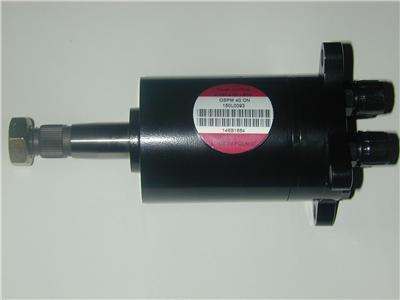

New danfoss ospm 40 on mini steering unit boat marine
This has never been installed on any equipment.
I just found out that this unit has a Marine application. It can be used on Speedboats and other watercraft. Mercury Outboards is Currently using 10 applications of this steering unit on their engines.
The OSPM steering system works with a hydraulic pump, delivering a precise oil flow for easy and responsive power steering - just as it has been successfully doing in tractors, mowers, forklift trucks and other vehicles since 1995. The exceptionally low input torque far outshines that of conventional hydraulic systems, which call for considerable muscle power when turning the steering wheel.
“The OSPM makes it possible to turn sharp angles faster, more easily and at top speed.
Sauer-Danfoss currently supplies Mercury with 10 variants of the lightweight and compact ministeering unit, using 40cm and 50 cm displacements with a max pressure load of 125 bars.
The unit is connected to the steering wheel via the tiltable OTPM steering column, which may be integrated in the unit as needed. Variable angle options allow the steering wheel to be positioned as required for optimum driver comfort.
For light vehicles such as garden tractors, municipal vehicles, lawn mowers, small forklift trucks etc., Sauer-Danfoss offers OSPM hydrostatic steering units.
Special principal OSPM characteristics are:
• Compact design and small dimensions
• Optional integrated steering column
• Integrated fittings in end ports.
