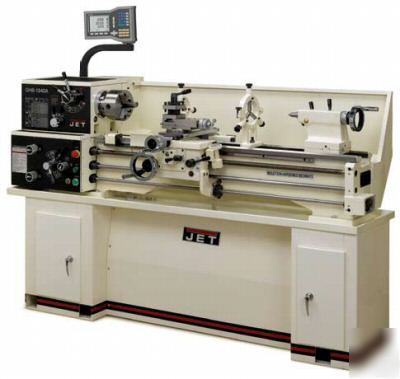

Jet ghb-1340 metal lathe, with stand & dro installed

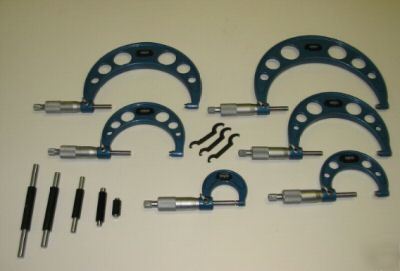

Shars 6 pc. Part# 303-2653N Micrometer Set, a 129.99 value
· Tolerance test certificate included
· Hardened and ground gears are featured in the headstock and gearbox
· D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
· Headstock is constantly oiled during operation
· Gear box gives wide inch threading and feed capabilities with no gear changes
· V-way bed design is induction hardened and ground
· Gap bed section provided for larger diameter work
· Independent lead screw and feed rod
· Spindle actuation control is apron-mounted
· Compound and cross slide have backlash elimination
· Adjustable gibs are incorporated in the carriage and slide ways
· Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
· 6" 3-jaw direct mount chuck with top reversing jaws
· Centers and headstock center sleeve
Swing Over Cross Slide (in): 7 25/32
Swing Through Gap (in): 18-3/4
Distance Between Centers (in): 40
Hole Through Spindle (in): 1-3/8
Spindle Taper (With Sleeve): MT-5 (MT-3)
Range of Spindle Speeds (RPM): 70 - 2,000
Number of Longitudinal and Cross Feeds: 40
Range of Longitudinal Feeds (in/rev): 0.0036 - 0.1005
Range of Cross Feeds (in/rev): 0.0012 - 0.0345
Range of Inch Threads: 4 - 112 T.P.I.
Range of Metric Threads (mm): 0.2 - 6
Compound Slide Travel (in): 2-11/16
Cross Slide Travel (in): 6-5/16
Tailstock Spindle Travel (in): 3-3/4
Taper in Tailstock Spindle: MT-3
Steady Rest Capacity (in): 3-1/2
Follow Rest Capacity (in): 2-3/4
Overall Dimensions with Stand (L x W x H /in): 71 x 32 x 47 Main Motor: 2 HP, 1 Ph 230V Only
Add these items for only .99 cents:

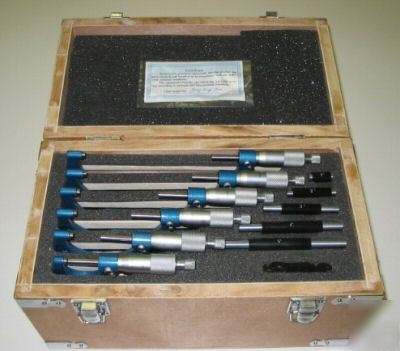

Shars 6 pc. Part# 303-2653N Micrometer Set, a 129.99 value
* Business with a dock or a forklift: FREE
* If a lift gate is needed (to a business address), add $100.00
* If going to a residence, add $200.00
LOCAL PICK UP / WILL CALL POLICY:
No local pick up on this item.
New Items: New items are covered by the manufacturer’s warranty policy. This info can be found by contacting the manufacturer or you can ask us about any specific warranty question and we will try to help. All E Bay items must be warranted through the manufacturer’s warranty center or the manufacturer themselves, NOT Rayco Industrial Supply. There may be an occasion where there is an exception to this rule but you must contact us for details.
