#9842 - kapp vas-482 cnc gear grinder

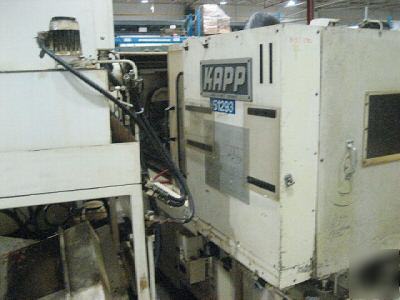

KAPP VAS-482 CNC GEAR GRINDER FOR EXTERNAL SPUR AND HELICAL GEARS
Max. swing diameter 300mm / 11.8"
Max. grinding wheel travel 550mm / 21.6"
Helix angle (maximum) +/- Deg.
Spindle speed range 1250 - 6300 RPM
Center distance range 1.4" - 9.25"
Floor space (approx.) 5,7 x 3,4 x 3,0 m
Hydraulic control of spindle travel via double acting hydraulic cylinder for the following work funtions:
A.) Spindle forward= Expanding arbor moves into taper bushing of index spindle.
B.) Spindle return= Expanding arbor with draw rod moved out of taper bushing.
Arbor withdrawal is effected by the support element at the tailstock spindle and the shoulder of the arbor pilot.
Spindle is mounted in pilot bushings with backlash adjustment.
Two-plane tailstock center adjustment via taper gibs.
Optronic multiprocessor D145 CNC controls
External gear grinding spindle type IV
**NOTE - Machine recently scraped and aligned by Kapp factory technitions**
