1GHZ spectrum analyzer AT5010

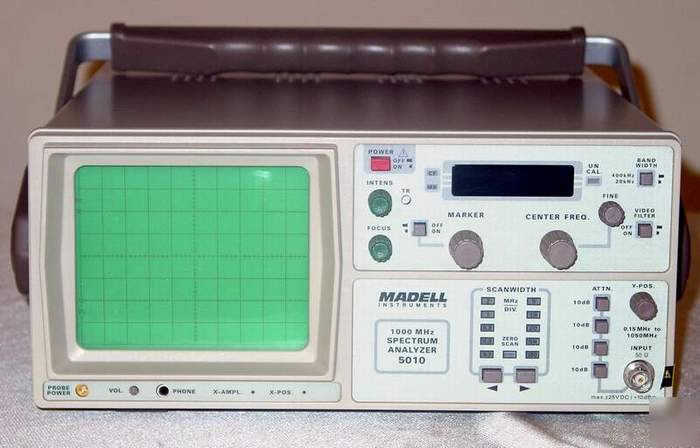

New MADELL 5010 1Ghz spectrum analyzer, in factory sealed box.
* Frequency range: 0.15 to 1050MHz
* Center frequency display accuracy: 100KHz
* Resolution of frequency display: 100KHz(4.5 digit LED)
* Frequency scans width: 100KHz/div to 100MHz/div, in 1-2-5 steps.
* Frequency scan width accuracy: 10% frequency stability; better than 150KHz/hour
* IF bandwidth(-3dB): 400 KHz or 20 KHz, switchable
* Amplitude range: -100dB to +13 dBm
* Screen display range: 80 dB (10dB/div)
* Reference level: -27dBm to +13dBm(in 10dB steps)
* Reference level accuracy: 2dB
* Average noise level: -99dBm
* Distortion: <-75dBc: 2nd and 3rd harmonic
* 3rd orer intermod: -70dBc(two signals>3MHz apart)
* Sensitivity: <5dB above average noise level
* Log scale figelity: 2dB(without attn.) Ref.: 250MHz
* Input attenuator: 0 to 40dB(4x10dB steps)
* Input attenuator accuracy: 1dB/10 step
* Max. input level: +10dBm, 25Vdc(0dB attenuation) +20dBm, (40dB attenuation)
* Display: 6" CRT, 8x10 division gratitude
* Trace rotation: adjustment from front panel
* Power: 110V/220V 10% switchable, 50/60Hz
Test it in our Los Angles showroom. Call (***)670-9023 to make arrangements.
This offer is about half the price of similar products. You can find that by searching on Google with key words "5011 spectrum analyzer".
Accessories included with the 5011 and 5010 packages.
