Perfecto straightener, no. 17-12-19, 1992 (19445)

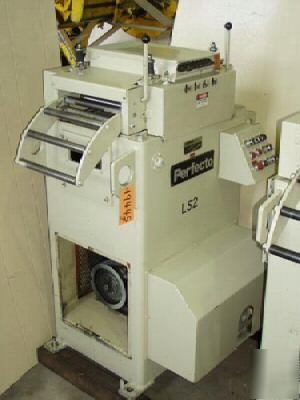

12" x .080", PERFECTO, No. 17-12-9, 9 Roll x 1.7" Dia., Pinch Rolls, 1992
MODEL..................................17-12-9
SERIAL NUMBER..........................S2-92131 Year: 1992
Maximum Width Capacity.................12"
Maximum Thickness Capacity............. .080"
Minimum Thickness Capacity............. .008"
Line Speed, Variable...................1200 to 3600 IPM
Number Of Straightening Rolls..........9
Diameter Of Straightening Rolls........1.7", Located On 2-1/2" Centers
Two Sets of Pinch Rolls, 2.5" Diameter Located On Entry and Exit Sides.
Both Sets Are Power Driven. PInch Rolls Manually Operated By Lever For
Threading Coil Stock And Equipped With Spring Hold Down On Upper Rolls.
Adjustable Collar Type Stock Guides On The Entry Side For Guiding Coil
Stock Into The Straightening Rolls.
Coilteck Model CS-5100 Ultrasonic Loop Control

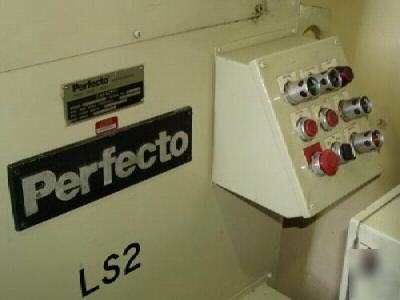

Electrical Controls Including Jog Forward and Reverse Push Buttons
Approximate Weight.....................1925 Lbs.
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
