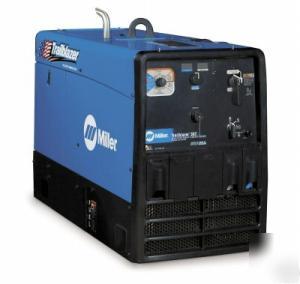

Miller trailblazer 302 907216 welder generator w cables


MILLER TRAILBLAZER 302 907216 WELDER GENERATOR W CABLES
Trailblazer 302 with ready to weld package.
Cable and holders included. $250.00 value
* 50 foot 1/0 cable with Lenco LC-40 Red Male quick connector and Lenco 500 amp EG-500 ground clamp
* 25 foot 1/0 cable with Lenco LC-40 Black Male quick connector and Lenco AF-50 500 amp Electrode holder
* 1 foot 1/0 cable with Lenco LC-40 Red Female quick connector and lug
* 1 foot 1/0 cable with Lenco LC-40 Black Female quick connector and lug
* The 1 foot cables can be attached to machine and then the welding cables can be disconnected and stored out of elements. Protect your cables!!!!!
Designed for the professional welder who needs a welder/generator with excellent arc performance for all types of welding jobs.
New! Quietest engine drive in its class. Fully enclosed case protects the engine and decreases sound levels by 1/3 over previous models. Removable service doors provide easy access for engine maintenance.
10,500 watts of Accu-Rated - Not Inflated generator power. Cranks out enough power for most applications: job site, farm/ranch, or home. 9,500 watts of continuous power.
Exclusive! Trailblazer Series offers the ONLY two-generator system - one for welding and one for generating power - meaning no interaction between tools and the welding arc, and it has the strongest generator power while welding.
Improved Arc Performance. Legendary four-pole rotor and 3-phase weld output for the smoothest, most stable and flawless multi-process arc in their class. Now with preset DIG settings (Stick), Adaptive Hot Start, and Lift-Arc/Scratch Start TIG with Auto-Stop.
Lift-Arc start provides TIG arc starting without the use of high frequency.
New! DC TIG with Auto-Crater allows time for addition of filler to crater, and eliminates unwanted arc strikes outside the weld area for better weld finishes.
DC TIG with Auto-Stop allows the arc to be stopped without the loss of shielding gas and without unwanted arc strikes outside the weld area for better weld finishes.
Exclusive! Digital Meters with SunVision technology for easy reading in direct sunlight or shade. Self-calibrating digital weld meters with meter maintenance functions.
Larger Fuel Capacity. 12-gallon tank can keep the generator running for 14 hours with a 4000-watt load. Exclusive Smart Fuel Tank is designed to minimize the chance of back splash when refueling.
Exclusive! Super-tough Protective Armor with receptacle and output stud covers made from XENOY make the Trailblazer virtually indestructible. Other XENOY applications include: automotive bumpers, tractor hoods, lawn mower decks, etc...
Active Field Current Control makes small adjustments to increase overall arc performance in all conditions and weld processes.
Four Pole - Three Phase Weld Output
True multiprocess CC or CV output is perfect for the professional welder, producing X-ray quality Stick, MIG, and TIG welds. Its four pole, three phase welding arc is the smoothest, most stable arc in its class.
Our alternator and generator are comprised of iron and copper to stand up to the challenges of your welding needs.
Adaptive Hot Start for Stick automatically increases output amperage at the start of a weld should the start require it and prevents the electrode from sticking and creating an inclusion.
Engine iIdles 3-4 seconds after starting to extend engine life and reduce fuel consumption.
Auto Remote Sense automatically switches from Panel to Remote Amperage/Voltage (A/V) control with remote connected. Eliminates confusion of the Panel/Remote A/V switch.
* Air Carbon Arc (CAC-A) Cutting and Gouging (Rated: 3/16 in carbons, Capable: 1/4 in carbons)
* Air Plasma Cutting and Gouging (PAC) with Optional Spectrum Models
* MIG/FCAW: 300 A at 25 V, 100% duty cycle
* DC TIG/Stick: 280 A at 25 V,
* AC TIG/Stick: 200 A at 25 V, 60% duty cycle
* MIG/FCAW: 13 - 35 V, 325 A
Generator Power- rated at 104F (40C)
* Accu-Rated 10,500 Watts Peak
* Kohler: 23 HP at 3600 RPM (gas)
LIST PRICE: $4737.00 for welder only
