New oz gedney inertia switch class 530 cat #7AS10C

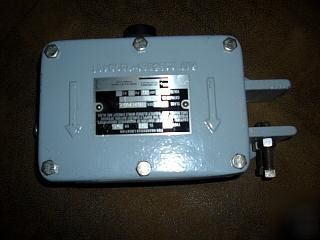

NEW OZ Gedney Inertia Switch Class 530
Catalog # 7AS10C Serial # H121703-09
The Inertia Switch is a unidirectional shut down device that operates upon sharp impact and provides protection for oil well pumping units. When installed properly, the switch will shut down the pump engine or motor upon impact occuring from sucker rod breakage.
An external adjustable screw varies the impact trip level of the switch. The desired setting should prevent tripping on start up and normal operation, but trip upon malfunction.
