6" SURFACE GRINDER, Gallmeyer & Livingston 25
6" SURFACE GRINDER, Gallmeyer & Livingston 25

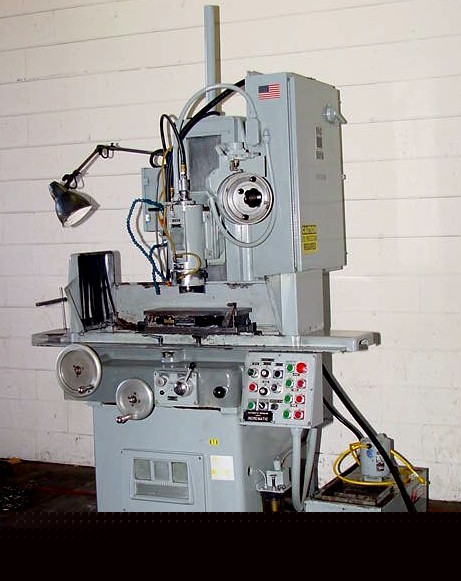

6" X 18" GALLMEYER & LIVINGSTON "VERTICAL SPINDLE"
SURFACE GRINDER w/AUTO INCREMENTAL DOWNFEED
** BEAUTIFUL DESIGN - BUILT TO LAST!! **
** MADE IN USA - THIS IS A SUPERIOR QUALITY MACHINE !! **
MODEL: 253V S/N: 253V309 NEW: APRIL 1994
HYDRAULIC TABLE TRAVEL, LONGITUDINAL .............. 23-1/2"
HYDRAULIC TABLE TRAVEL, CROSS ...................... 6-3/4"
LONGITUDINAL TABLE SPEEDS ................... 1" - 75" IPM
AUTO CROSS FEED TO TABLE PER STROKE ......... 0.01" TO 1/2"
CONTINUOUS CROSS SPEED ........................... 120" IPM
VERTICAL MOVEMENT OF WHEELHEAD ........................ 19"
AUTO INCREMENTAL DOWNFEED PER TABLE PASS ..0.0001" TO .001"
GRINDING WHEEL SIZE ...................... 5" DIA. x 1.25"B
GRINDING WHEEL RPM .............................. 3,600 RPM
APPROXIMATE FLOOR SPACE ....................... 85"W X 57"D
APPROXIMATE WEIGHT .............................. 4,250 LBS
VERTICAL SPINDLE MADE BY "GMN WHITNON", STYLE 442-1630-190
(S/N: 302408), 3 H.P. MOTOR/3/60/230-460 VOLT, AIR BEARING
DESIGN. UNIT USES A 5" CUP WHEEL QITH 1- 1/4" BORE.
AUTOMATIC INCREMENTAL DOWNFEED (INCLUDING SADDLE LOCK,
ADJ. HEAD KICK-UP & VARIABLE SPARK-OUT)
AUTO TABLE LOAD/UNLOAD POSITION
DUAL RANGE (COARS & FINE) DOWNFEED SYSTEM. FINE FEED
ACTIVATED BY INSERTING A PIN IN ONE OF 10 SOCKETS
RANGING FROM .001" TO .010" ABOVE ZERO SET POINT
(FEED CAN BE ADJUSTED FROM .0001" TO .010" AT
HYDRAULIC LONGITUDINAL AND CROSS FEEDS
SLOW SPEED TABLE CONTROL - 1" TO 75" IPM
AUTOMATIC SLOW SPEED TABLE WITH SWITCH SELECTION FOR
INITIATION AT EITHER ZERO SET POSITION OR FROM
POWER ELEVATION OF THE WHEEL (RAPID POSITIONING)
FACTORY EXTENDED COLUMN (3"), PROVIDING FOR INCREASED
6" X 18" PERMANENT MAGNETIC CHUCK
COOLANT SYSTEM W/TANK/PUMP/SPLASH GUARDS
1.5 HP 3/60/220-440 VOLT HYDRAULIC SYSTEM MOTOR
ORIGINAL AQUISITION COST FOR THIS MACHINE AS DESCRIBED WAS
OVER $75,000 IN 1994! HOLY COW!!
*** LIKE NEW CONDITION & APPEARANCE ***
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
Machine Location: HARRISON, NJ
