Uei DL235 dl-235 true rms digital clamp-on meter dmm
PLEASE READ THE DESCRIPTION CAREFULLY!

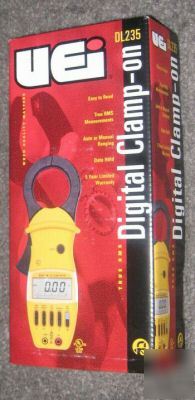

UEI DL235 TRUE RMSDIGITAL CLAMP-ON METER
IN THE FACTORY SEALED PACKAGING
The DL235 True RMS Clamp-On takes the mystery out of electrical diagnostics. Identify harmonics with the SOFT/CREST features or simultaneously monitor current and frequency. High scales and broad bandwidth give you the ability to tame today's tough electrical problems. Five year limited warranty.
* Soft mode smoothes amp, frequency or voltage readings
* Crest mode displays 1/2 wave peak to calculate crest factor
Digital - 4000 counts (3 3/4 digits)
[Hz: 9999 count], updates 4 times/sec.
Analog - updates 20 times/sec. 41 segment bar graph.
Current measurement - 40Hz to 2KHz
Frequency measurement - 0.5Hz to 10KHz
Crest factor, continuous waveform
(45Hz to 65Hz, less than 1000A peak)
1.4 to 2.0 add 20 digits to accuracy below 100A
2.0 to 3.0 add 1% to accuracy (+20 digits below 100A)
3.0 to 5.0 add 2% to accuracy (+20 digits below 100A)
1% of current in adjacent conductor max.
Clamp-on meter, clip-on holster, test-leads, user’s manual, and 9V battery (installed)
Safety standards (appropriate parts)
Installation Category II, CSA C22.2
No. 231, ANSI/ISA S82, VDE 0411
(4.39 cm H x 9.75 cm W x 24.5 cm L)
* Goods will be dispatched in 2 days.
* Any returned non-defective item(s) is subject to 20% restoking fee
* Items will be replaced or exchanged in case of DOA
