Mks eni dcg-100 dc plasma generator master+slave set

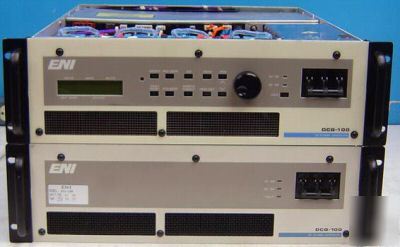

ENI DCG-100 DC Plasma Generator Master and Slave Set
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from ENI and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
We have no way to test these units.
The Top Unit's Serial Tag Reads:
Model Number: DCG6M-A111000010
The Bottom Unit's Serial Tag Reads:
Model Number: DCG6M-A112000010
Electrical Tag on the Top Unit Reads: 200-208 Volts, 3 phase 4W+G, 45 Amps per phase, 50/60 Hz, Level 1
5kW to 30kW DC Power for Plasma Applications:
Power Output: 5kW to 30kW in 5kW increments
Power: 10.5kW for 10kW output; proportional at other power levels
Regulation Modes: Volts, Amps, Watts
Output Control Modes: Ramping, Time, Run, Joule, Sequence, Constant Run
Load Regulation: ±0.1% for 2:1 load impedance range
Line Regulation: ±0.1% for either a ±10% line voltage change or ±2% line frequency change
Independent of regulation mode:
+/-0.1%: 10-100% or rated output
+/-0.2%: 1-10% of rated output
Standard: Senses arc within 20µsec, independent of set point.
Standard: Programmable from 200µs to 50msec.
Standard: <0.2J for standard
Line-to-Output Efficiency: >90%
Input Power Factor: 0.8 at maximum power output
Fully Functional: Provides complete control and monitoring from the master unit
Remote: Provides complete remote control and monitoring functions
Cooling System: Forced air; front panel & right side in, rear panel out
Weight: 5kW: 35 lbs (16.5kg)
EMC & Safety Compliance: EN50081-2: 1992 Group 2 Class A; EN50082-2:1995; UL 1950; EN 60950 1988/AM1: 1990; CSA C22.2 No.234-M9
Shock Resistance (certified to meet):
* IEC 68-2-29 test Eb for bump
* IEC 68-2-6 test Fc for vibration
* IEC 68-2-31 test Ec for topple
