Audio precision audio analyzer sys-2322 - dual domain

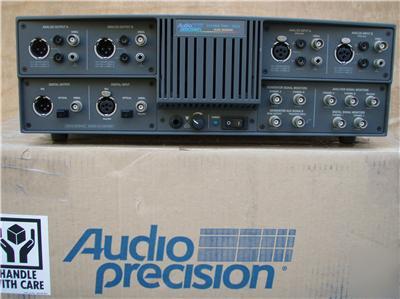

Audio Precision Audio Analyzer Sys-2322 - Dual Domain
Audio Precision Analog/Digital Dual Domain Audio Analyzer Sys-2322
System Two with APIB Interface
Exceptionally Clean Late Production Unit
Fully Adjusted to Specification Design Center, Performance Tested to AP Standards, and Warranted
Two Channel Analog Generator and Two Channel Analyzer plus DSP and Digital I/O
Dual Channel Analog 40, 150 or 600 Ohm Z Output 10 microvolts to 26.67 volts RMS
Each Analog Channel has Independant Control over Amplitude, Polarity, and Z
Analog Sine Sweep from 10 Hz to 204 kHz w/Analog Stimulus
Flatness +/- 0.008 dB below 20 kHz
Amplitude Accuracy +/- 0.06 dB at 1 kHz
Residual THD+N 20 Hz-20 kHz 0.0004%
Analog Analyzers have -108 dB (0.0004%) Noise & Distortion Floor (22 kHz BW)
Analog Analyzer Bandwidth >500 kHz
Analyzer Input Voltage Range 5 uV to 230 Volts Peak
Analyzer Noise less than 1 microvolt
Fast Fourier Transforms for Spectral Analysis
Multitone Signals for FastTest Implementation
MLS- Maximum Length Sequence Generation
Digital I/O in Professional AES/EBU Balanced Format, as well as Consumer SP/DIF in both Optical and Unbalanced Coaxial
Parallel and Serial I/O for BitTest
Internal Speaker to Monitor Signals
Contact me for full specifications by email
The World Standard for Audio System Measurements
Test Avionics, Audio Processors, Broadcast Links, PA Systems, Vacuum Tube Electronics, Amplifiers, Preamplifiers, Low Noise Amplifiers, Digital Audio Devices, D/A and A/D Converters, .
Seven Option Filter Slots Available
Frequency Response, Crosstalk, Noise, Distortion (Harmonic), Common-Mode
Total Harmonic Distortion Measurements
Input/Output Linearity Testing
FFT Spectrum Analysis - See Individual Harmonic Orders, as well as Intermodulation Sidebands
Digital or Analog Signal Amplitude Probability Distribution Histogram (InterVu)
Program Automated Test Procedures for QC using Included AP Basic Software
Floating Balanced XLR Inputs or Unbalanced Banana Inputs with 150, 600 Ohm or 100 kOhm Input Z Selectable
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
You need to provide a Windows 95 to XP PC with one of the APIB Interface cards or APIB/USB module to Control the AP Analyzer
Questions? Call Dr. Marshall Buck Toll-Free at (***)-798-8324 9 AM to 5 PM PDT
Includes Interface Cable, Power Cord and APWin 2.24 Software
Audio Precision PCI Interface Card Available from Audio Precision for $330
Burst Generator, IMD/IMA Options Available Installed for Extra Fee
Contact Me for Filters, Switchers, DCX-127 and other Options
CD-ROM Included with Test Suite to Exercise Many Capabilities of this Fine Instrument
Disc 1 of AP Testing Fundamentals Tutorial DVD Included
