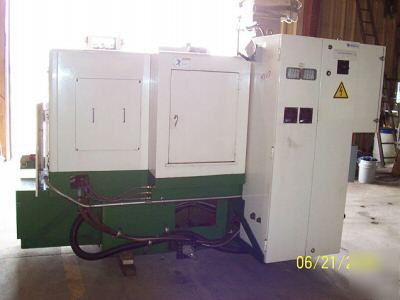

#9325 - shimada 6-spindle cnc automatic chucker
SHIMADA MODEL CN-660 6-SPINDLE CNC AUTOMATIC CHUCKING MACHINE
70mm (at front bearing) / .2.75"
Collet capacity 5" (2-Jaw / 3-Jaw)
Power chuck capacity (option) Max. 3000 RPM
Spindle speed Inverter/Servo motor
Cutting feed rate 0.01-300 mm/min.
Position of NC slide On no.4 station
Control axes 2 axes simultaneous (X/Z)
Minimum input increment 0.001mm
Rapid feed rate (X/Y) 10 m/min.
Position of cross slide On no.5 station
Tapping capacity M22 x 1.5p (0.45 % carbon steel)
Distance between spindles 140mm / 5.51"
Dimensions: L x W x H 1,770mm / 81"x96"x70"
10 HP Main spindle drive motor
(6) 5: 3-Jaw Howa power chucks
(2) 2-Axis CNC cross slide positions 4 & 5
Standard cross slide position 2
Hydraulic drive for end tool slide
