@@ @@ dario SV3 maxi bandsaw wood only one like it
American Woodworking Equipment Distributors
With circle cutting attachment
Imagine the potential of being able to tilt at will and create a masterpiece!

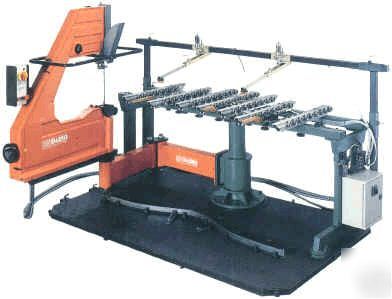

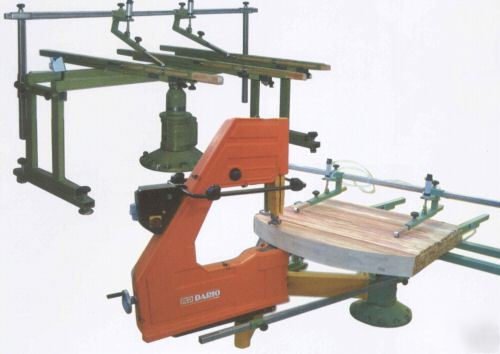

The bandsaw Model SV3, specially built to comply with craft-working requirements, shows some innovations not found on other traditional type saws:
ü Small size and large cutting capacity.
ü Tiltable table: -15o to +45o.
ü Blade completely enclosed for maximum safety.
ü Thanks to 3 wheels (rubber, vulcanized, and ground), it is possible to use blades as narrow as 1/8†(3 mm) for very small radii. Flywheels themselves do not require frequent maintenance.

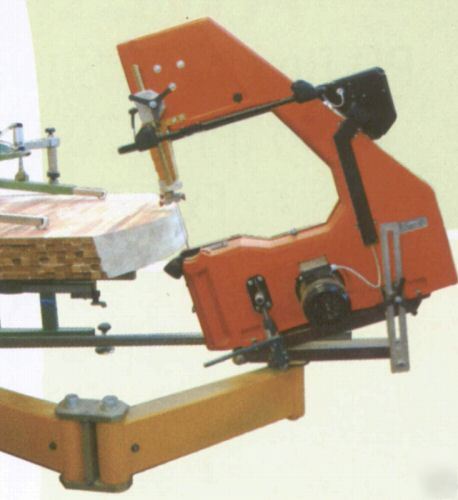

ü Mounted on is an articulated arm, which allows smooth and easy movement of the saw unit around the lumber or panels.
Cutting height without work surface and blade guide 400 mm.
Dimensions of work surface 800 x 600 mm.
Maximum blade length 3.650 mm.
Maximum Sanding Belt Length 3.6 mm
Overall dimensions (length x height) 1380 x 600 x 1800
The Model SV3 Maxi Bandsaw has a cutting height capacity of 15†and comes with a 3 hp 3-phase motor. Safety two arm operation makes this the fastest cutting operational saw available in the market today. Prices start at $15,850.00 with delivery of 60 - 90 days.
