Tektronix model 7104 2 channel oscilloscope w modlues

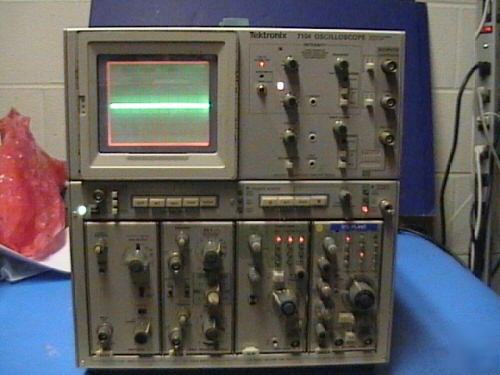

Tektronix Model 7104 2 Channel Oscilloscope. With 1-Model 7A29 S/N BB010155 Amplifier Module Plug-In With Input 50 Ohm Maximum Input 10V RMS 50Vpk Port. 1- Model 7A26 S/N B192803 Dual Trace Amplifier Module Plug-In With CH 1/2 1M Ohm 20pF (20MHz/Full BW Switch) Ports. 1- Model 7B10 B021184 Time Base Module Plug-In With EXT TRIG In Port. 1- Model 7B92A Dual Time Base Module Plug-In With DLYD TRIG In Port Main TRIG In Port. Outputs +SAWTOOTH Port. +GATE Port. SIG Out Port. Calibration Port. 2- Probe Power Ports. Signal Ready-A/B Ports. Single Sweep Reset +/-15V Maximum Port. Gratcule/Readout Single Shot +/-15V Port. Z-Axis Input +/-5V Maximum Positive Signal Decreases Intensity Port. Control Illumination High/Medium/Off Switch. Power 115V 90/132V 230W Max 3.5A @ 90V 230V 180/250V 230W Max 1.8A @ 180V 4A 48/440Hz.
This unit is in good condition and is 100% functional.10 DAYS WARRANTYS. Please feel free to email us regarding technical information or for any questions you may have. This unit is Guaranteed not to be DOA!
