New rhino 2409 front end loader ford, holland,case/ih

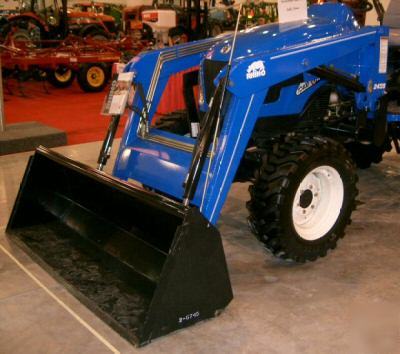

Brand New Rhino 2409 Quick Attach Front-End Loader.
This Rhino Loader is Compatible with most New Holland Supersteer Front Axles!
Price is for a Complete, Ready to Install Rhino 2409 Loader, which Includes the Following:
* A Black Rhino 2409 Loader.
* 60" Heavy Duty Pin-On Bucket with Level Indicator Rod.
* Joysick Controlled Valve & Valve Mounting Brackets.
* ONE Set of Mounting Brackets for ONE of the Tractors Listed in the Tables Below.
* Horsepower Range is 30 to 45 HP.
* Maximum Lift Height to Pivot Pin is 106".
* Clearance with Bucket Dumped is 86".
* Reach at Maximum Lift Height with Bucket Dumped is 24".
* Maximum Dump Angle is 44 Degrees.
* Maximum Rollback Angle is 17 Degrees.
* Lift Capacity at Maximum Lift Height at the Pivot Pin is 1790lbs.
* Total Package Weight With Bucket And Mounting Brackets is 1011lbs.
Fits the Following Makes & Models:
Agco Models: ST45 2 & 4WD & ST55 2 & 4WD (not compatible with Agco Front Weight Bracket or Grille Guard.
Case/IH Models: D35 2 & 4WD, DX35 2 & 4WD, D40 2 & 4WD, DX40 2 & 4WD, D45 2 & 4WD, DX45 2 & 4WD, DX48 2 & 4WD & DX55 2 & 4WD.
Cub Cadet Models: 7360 4WD, 8404 4WD & 8454 4WD.
John Deere Models: 970 4WD, 1070 4WD, 4500 4WD, 4510 4WD, 4600 4WD, 4610 4WD, 4700 4WD & 4710 4WD.
Kioti Models: DK45 4WD, DK45C 4WD, DK50 4WD, DK50C 4WD, DK35 4WD, DK35C 4WD (Serial #265400101 & Higher) & DK40 4WD.
Kubota Models: L3130 2 & 4WD, L3430 2 & 4WD & L3830 2 & 4WD. This Mounting Kit fits all the above Kubota Models in the following styles: FST, HST, GST & HST. It is compatible with the RC7-38 Mower, but is not compatible with a Kubota Front Weight Bracket with Grille Guard. L4400 2 & 4WD, L3600 GST or HST, L4200 GST or HST, L4300 GST or HST, L3710 GST or HST, L4610, MX5000 2 & 4WD, L2800 2 & 4WD (not compatible with Kubota Weight Bracket with Grille Guard) & L3400 2 & 4WD (not compatible with Kubota Weight Bracket with Grille Guard).
Massey Ferguson Models: 231 2WD, 231S 2WD, 431 2WD (fit Tractors with Vertical Exhaust Only), 1455V 2 & 4WD (not compatible with Massey Ferguson Grille Guard or Front Weight Bracket), 1445 2 & 4WD (not compatible with Massey Ferguson Grille Guard or Front Weight Bracket), 1455 2 & 4WD (not compatible with Massey Ferguson Grille Guard or Front Weight Bracket) & 1165 2 & 4WD (not compatible with Massey Ferguson Grille Guard or Front Weight Bracket).
Ford/New Holland Models: 2120 2 & 4WD, 3415 2 & 4WD, TC35 2 & 4WD (compatible with Supersteer Front Axle), TC35D 2 & 4WD (compatible with Supersteer Front Axle), TC40 2 & 4WD (compatible with Supersteer Front Axle), TC40D 2 & 4WD (compatible with Supersteer Front Axle), TC45 2 & 4WD (compatible with Supersteer Front Axle), TC45D(compatible with Supersteer Front Axle), TC35A (compatible with Supersteer Front Axle), TC35DA 2 & 4WD (compatible with Supersteer Front Axle), TC40A 2 & 4WD (compatible with Supersteer Front Axle), TC40DA 2 & 4WD (compatible with Supersteer Front Axle), TC45A 2 & 4WD (compatible with Supersteer Front Axle), TC45DA 2 & 4WD (compatible with Supersteer Front Axle), TC48DA 2 & 4WD & TC55DA 2 & 4WD.
Expect That This Rhino Loader and ALL of the Equipment we Sell to be Top Quality Equipment that will Serve you well for a Lifetime, and Provide a Great Resale Value Too!
Plus, we are Glad to say, these Rhino Loaders are Made in the USA!!!
